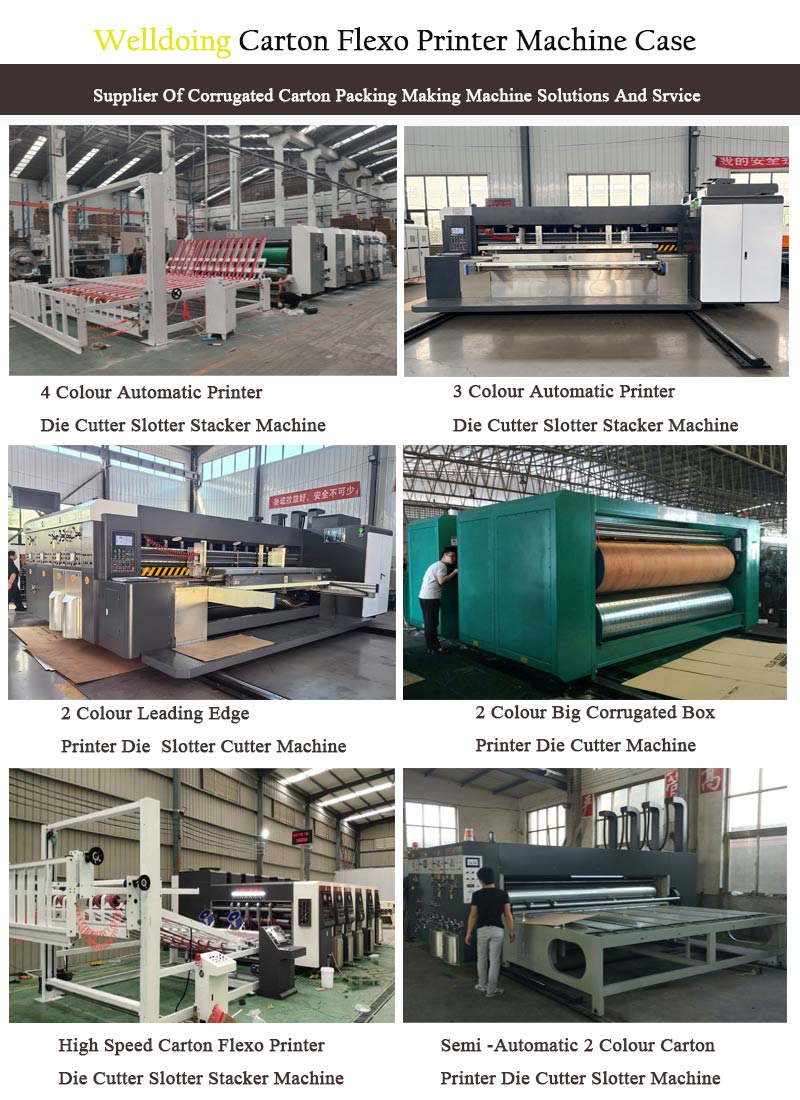

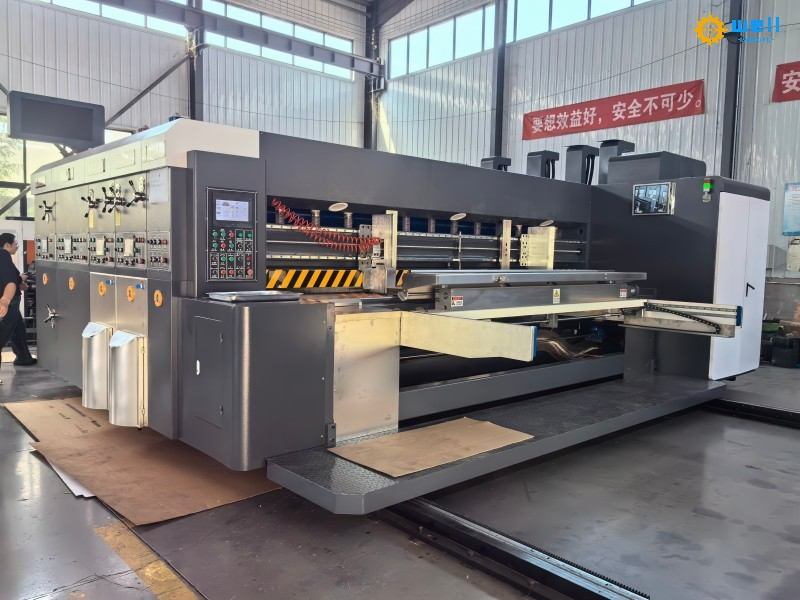

WELLDOING-A series auto flexo printing slotting die cutting machine is mainly used for printing high quality colors on corrugated cartons.
Maximum Paper Feeding size: 920×2400mm 1200×2800mm 1400×2800mm 1600×3000mm 3600×3000MM
(We can custom-made the machine size for you) Machine running speed: 150~280 pieces/minutes
1. Transmission gear: High precision grinding teeth.
2. Printing roller: 45#
steel rolling welding, computer dynamic balance correction, grinding and hard chromium plating.
3. Anilox roller: Dynamic balance correction
4.Lead edge feeder unit. vacuum sucking feeding cardboard
5.Auto ink circulation system
6. Fully electric control slotting creasing slitting knives which is easy to change order.
7.The gear of the machine: Auto lubrication with oil .
Characteristic of the Automatic flexo printing slotting rotary die cutting machine :
1.The machine consists of five parts: paper feeding, printing, slotting, die cutting and stacking.
2.Paper feeding department adopts advanced negative pressure adsorption and kick-back paper feeding with adjustable air volume.
3.The printing department of the automatic printer slotter die cutter machine adopts hanging plate roll, which can shorten the time of plate loading.
4.The slotting part of the electric adjusting box height, phase and slotting tool base move left and right, and synchronize with the press wheel.
5.Aerodynamic lifting of front end and photoelectric tracking of rear end of stacking part can automatically rise and fall
6.Alarm system to ensure the safety of operators.
Highly automated intelligent control, reducing labor costs
1.Fully servo-independent drive (mainstream high-end model)
Each color group, unwinding, winding, anilox roller, and plate roller is equipped with an independent servo motor, eliminating gear transmission and gear ink ripples. Speed fluctuation error is ≤0.1‰, with silent operation, low wear, and long lifespan.
2.Integrated Control with PLC and Touch Screen
One-touch start/stop, capable of storing thousands of order parameters (registration, pressure, speed, drying temperature), with one-click order switching and no need for repeated manual adjustments.
Our Service:
Pre-Sales Service
1. Inquiry and consulting support.

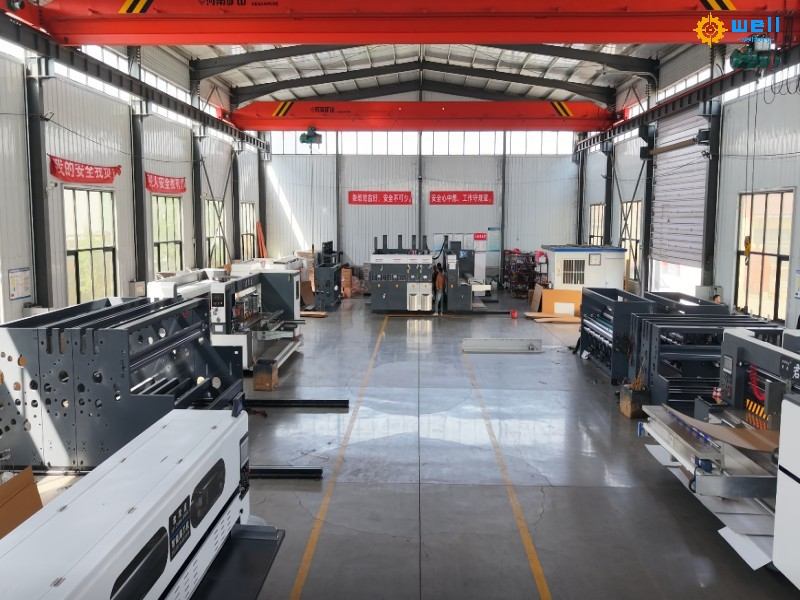

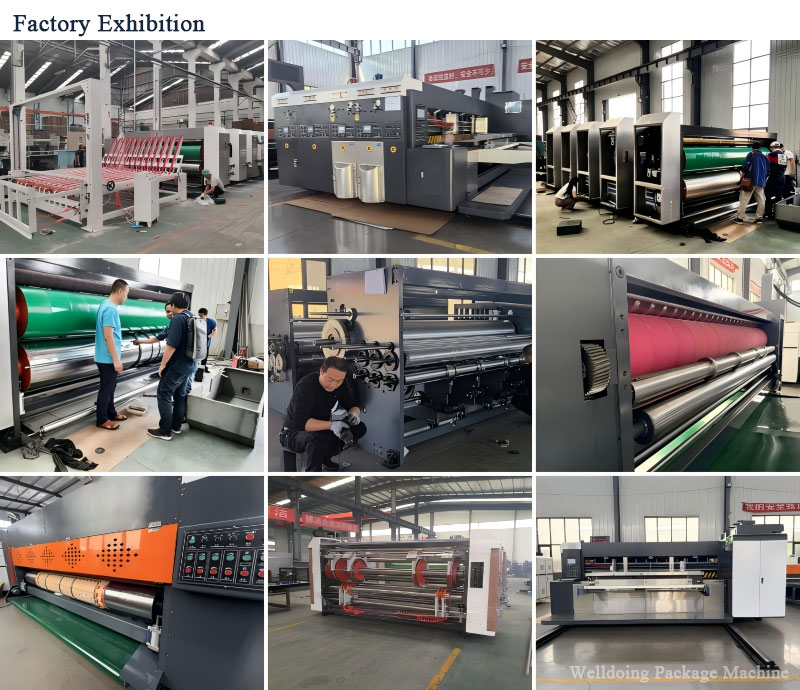

2.View our Factory.
After-Sales Service
1. Installation, training how to use the machine and technical support.
2. Engineers available to service machinery overseas.
