Product Application:

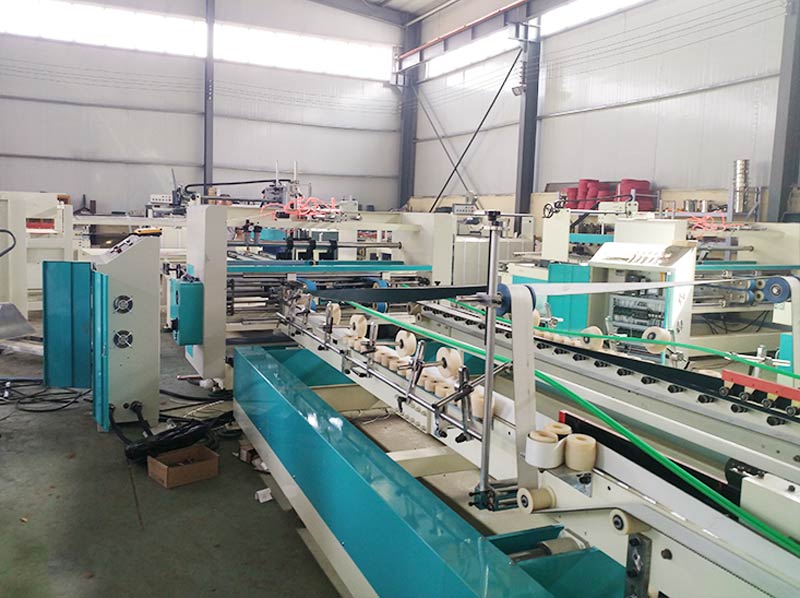

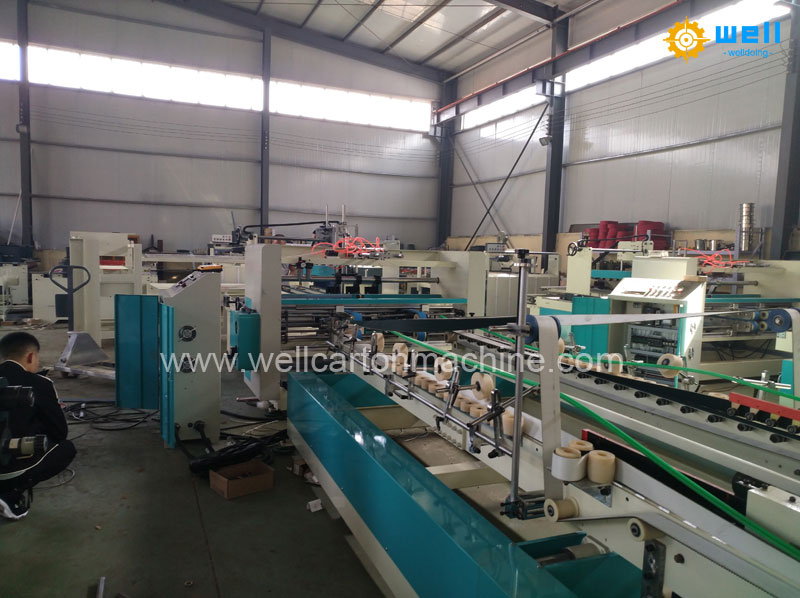

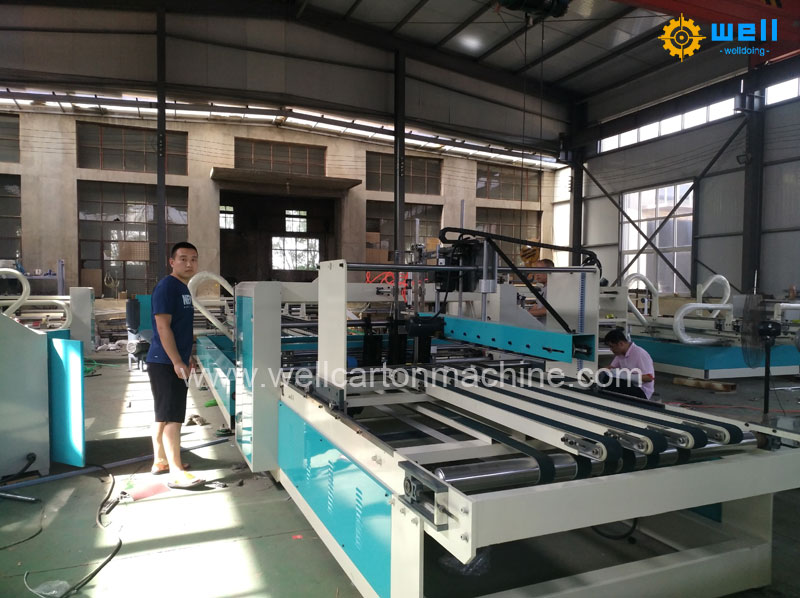

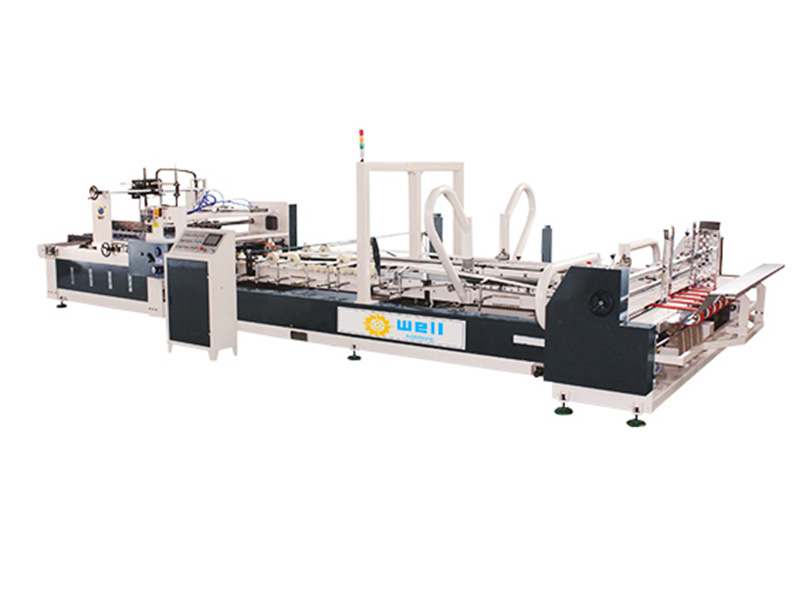

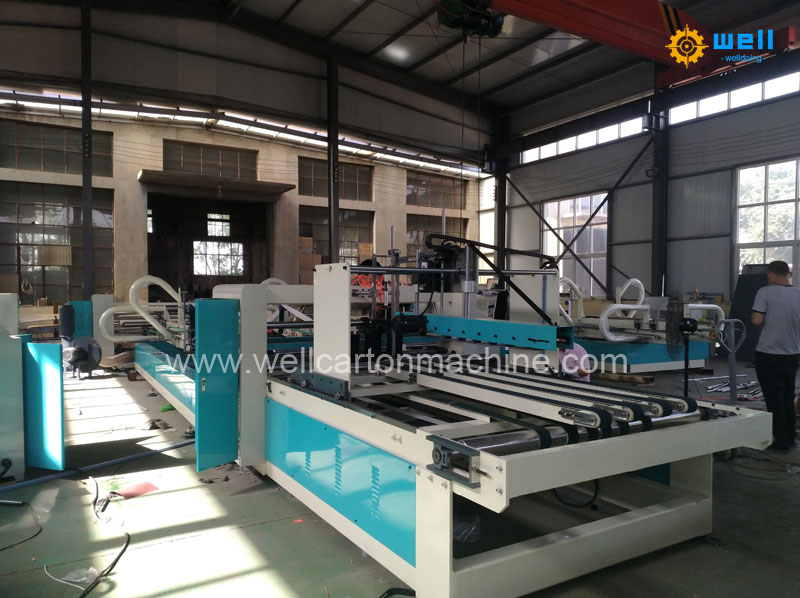

Automatic box folding gluing stitching machine is used in corrugated carton box folding gluing stitching, fruit corrugated carton box, food corrugated carton box, industry corrugated carton box and so on.
Frequency control, touch screen data input operation is simple and reliable.
Automatic feeding, automatic folding , auto-correction, automatic glue, automatic counting, auto stacker.
Upper and down carrier moved by liner guide rail and motorized controlling.
Technical Data
Model | 1224 |
Max gluing speed | 200m/min |
Max sheet size | 2400x1200 |
Min sheet size | 800x350mm (stitch) 560x250mm (glue) |
Folding mode | up folding |
Available sheet | 3 ply 5 ply corrugated boards |
Adhesive | PVA |
Max stitching speed | 6600pcs/hour |
Stitching head speed | 1200 stitches/min |
Stitching head | Swing type |
Stitching mode | Single or double |
Stitching wire | 1.8-2.0mm width |
Stitching distance | 30-100mm |
Slanting of the stitch | 45º |
Total power | 52kw |
Voltage | 380V, 50HZ, 3phase |
Dimension | 19500 x 4200 x 2400mm |
Weight | 26tons |
