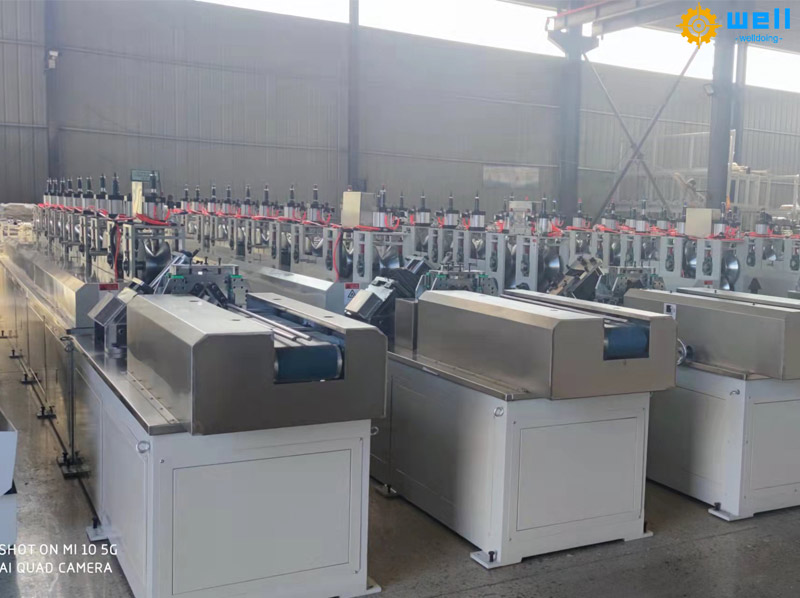

The core structure of the Paper angle board protector machine includes the forming group, cutting device, gluing system, and control system, which work together to achieve efficient automation production.
1、 Detailed explanation of core structure

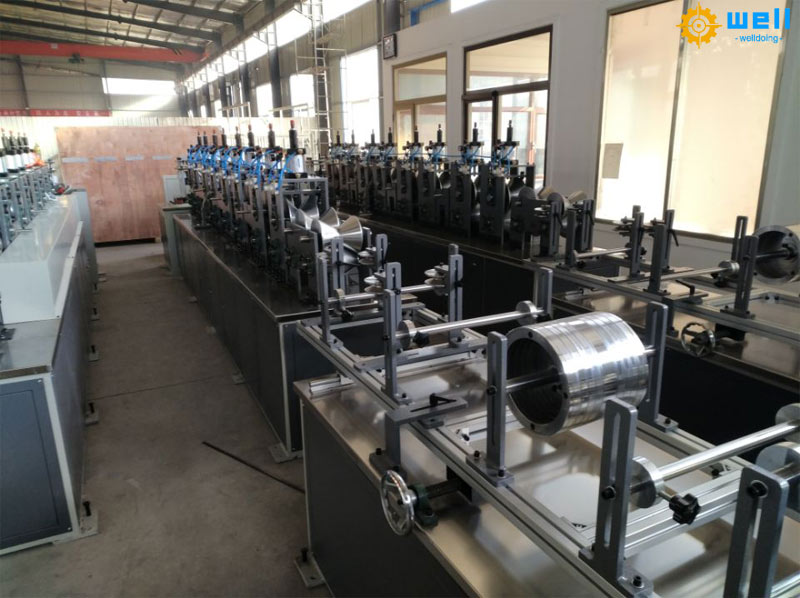

Forming group
Composed of multiple sets of pressure rollers, the pressure is adjusted by pneumatic lifting to ensure the accuracy of paper corner forming.

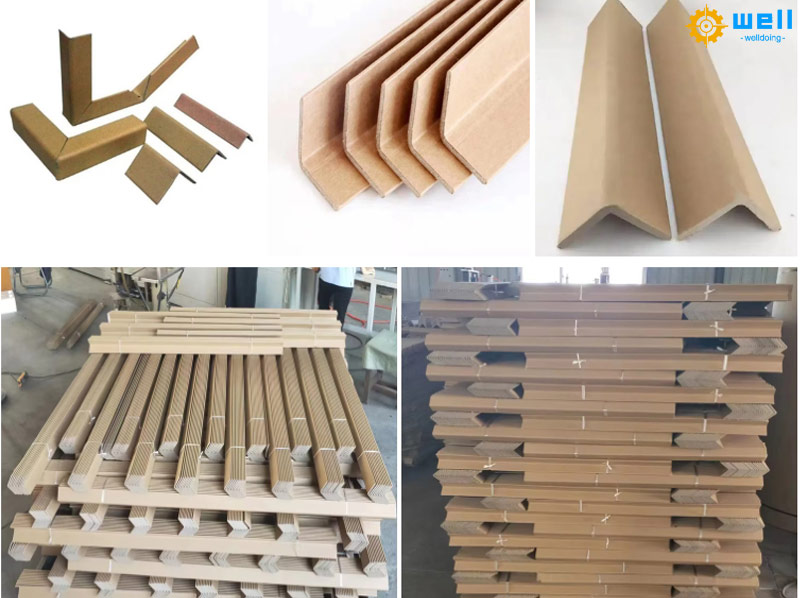

Support the production of paper corner protectors with different shapes such as U-shaped and V-shaped.
Cutting device
Using a cylinder and a "V" - shaped die, the paper corner length can be customized, and the cutting action is safe and reliable.
Glue system
By using a pneumatic diaphragm pump for automatic quantitative gluing, the glue rack can be used for single/double-sided gluing to meet different production needs.
Control system
Adopting PLC and servo motor+touch screen (HMI) control, it is easy to operate and supports arbitrary length adjustment under operating conditions.
2、 Technical parameters and functional characteristics of the automatic paper corner protector machine
Production speed: 0-50 meters/minute, high-speed variable frequency motor ensures production efficiency.
Specification adjustment: The width of the paper corner protector is 25-125mm, and the thickness is 2-10mm. It can be adjusted freely without changing the pressure wheel.
Automation level: automatic clutch, automatic synchronization, automatic tensioning device, reducing labor costs and improving production efficiency.
