furit box partition assembler machine feature:
1. Suitable for the auto insertion of all kinds of carton clapboard.
2. Vertical direct using vacuum adsorption feeding, landscape orientation using servo feeding , quick and accurate .
3. Longitudinal and transverse to cross the two pieces of paper at the same time.
4.Output in double work positions, high efficiency and energy saving.
5.The Carton partition assembler machine is touch screen control system, electric adjust of the clapboard parameters, easy and convenient to operate.
High precision flexible assembly for Full automatic partition assembler machine
The servo control system controls the entire positioning process, with a partition size error controlled within ± 0.5mm. The finished mesh has consistent elasticity, bidding farewell to the common problem of uneven manual assembly.
Flexible adaptation to diverse orders

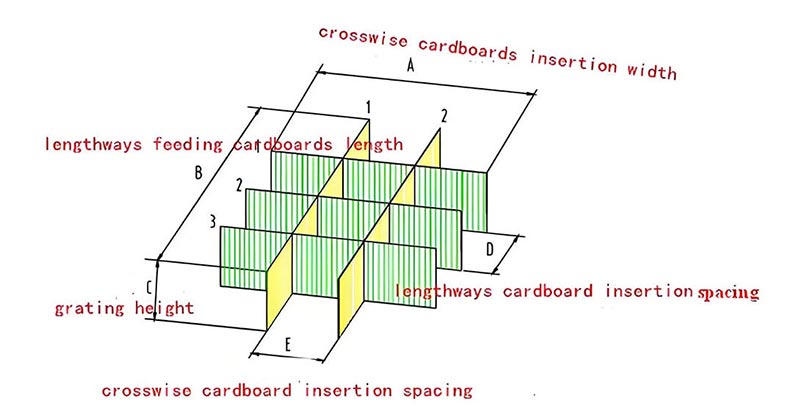

The slot spacing, partition height, and cardboard thickness can be parameterized and adjusted, suitable for 1.5-10mm corrugated cardboard. It can easily switch between 2 × 2 to 15 × 1 multi specification grid partitions, suitable for various packaging scenarios such as alcoholic beverages, fresh produce, and auto parts.
Efficient and labor-saving
Fully automatic feeding, insertion, forming, and discharging, with a maximum production capacity of 120 sets per minute. One worker can supervise the entire machine, greatly reducing the labor cost of manual insertion.
Stable, durable, easy to operate and maintain
Pneumatic+servo hybrid drive structure, with wear-resistant and rust resistant core transmission components, modular structure for easy maintenance, and low failure rate for long-term continuous production.
Application Scenarios
Widely equipped with cardboard box factory assembly lines, it is a standard equipment for shock-absorbing and compartmentalized packaging of wine bottles, canned goods, fresh fruits, ceramic vessels, precision hardware, and electronic components in the food, beverage, and home appliance packaging industries.
