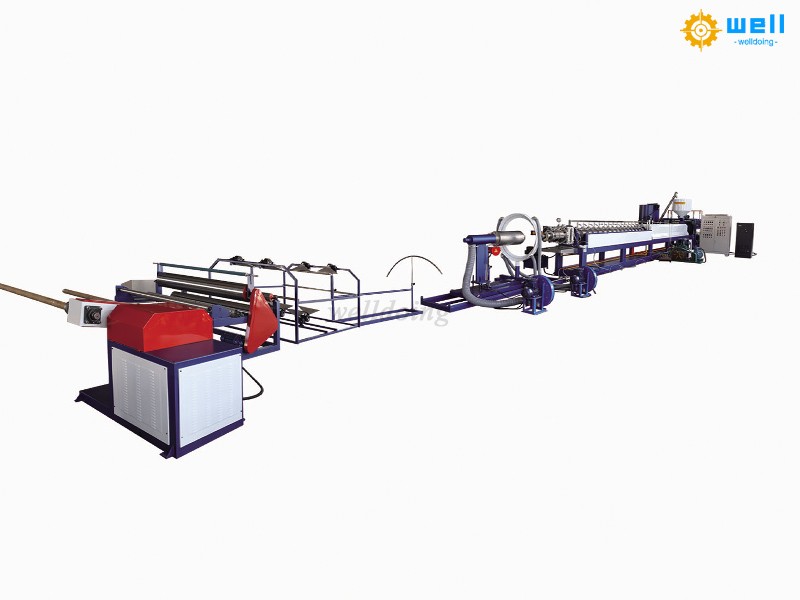

This EPE foam pipe production line can automatically regulate its pipe diameeter, and with the following chracters: Autofeeding, automatic net-changing, no material alarm, Moulding and digital display, internal and external cooling control, solid sparkless warming technique to the mainframe. Frequency conversion control has been applied to the motor of the mainframe, and this application can save 20-30% electricity than average machine.
Model | JC-FPG65 | JC-FPG 75 | JC-FPG90 | JC-FPG 105 | JC-FPG 120 | JC-FPG 150 | JC-FPG 180 | JC-FPG 200 | |
Screw diameter | mm | 65 | 75 | 90 | 105 | 120 | 150 | 180 | 200 |
Foaming rate | % | 30~40 | 30~40 | 30~40 | 30~40 | 30~40 | 30~40 | 30~40 | 30~40 |
Capacity | kg/h | 25 | 35 | 45 | 55 | 70 | 120 | 160 | 200 |
Inner diameter | mm | Ø6-12 | Ø8-15 | Ø8-15 | Ø15-20 | Ø15-20 | Ø20-25 | Ø25-40 | Ø40-60 |
Outer diameter | mm | Ø15-30 | Ø20-40 | Ø30-50 | Ø40-60 | Ø50-70 | Ø60-100 | Ø80-150 | Ø100-280 |
Installed capacity | kw | 45 | 55 | 62 | 68 | 90 | 132 | 168 | 178 |
Running capacity | kw | 32 | 39 | 45 | 48 | 65 | 95 | 120 | 130 |
Installed dimension | m | 9×2.2×2.4 | 9×2.2×2.4 | 10×2.2×2.4 | 10×2.2×2.4 | 15×2.2×2.4 | 16×2.2×2.4 | 20×2.2×2.4 | 23×2.2×2.4 |
Weight | T | 6 | 6 | 8 | 8 | 12 | 13 | 16 | 18 |
Characteristics of finished Product
--High resilience and buoyant effect.
--Effective insulating capability.
--Low thermal conductivity.
--Negligent absorption and water permeability.
--Chemical resistant.
--Effective and safe to handle in installation application.
--Non-toxic and environmental friendly
--Fine round closed-cell cellular structure assure
--Excellent flexibility.
-100% recyclable and reusable.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
