If you are sourcing reliable packaging machinery for cushioning packaging production, you may wonder: How does an air bubble film sheet making machine turn simple PE pellets into protective bubble wrap sheets? An air bubble film equipment is a continuous extrusion forming line that melts polyethylene resin, forms air pockets by vacuum shaping, laminates two film layers, cools, and winds finished air bubble sheet rolls in one automatic workflow. It is also widely known as a bubble wrap sheet making machine, air bubble sheet extruder, or bubble film production line, serving packaging factories, logistics suppliers, and plastic product manufacturers worldwide.

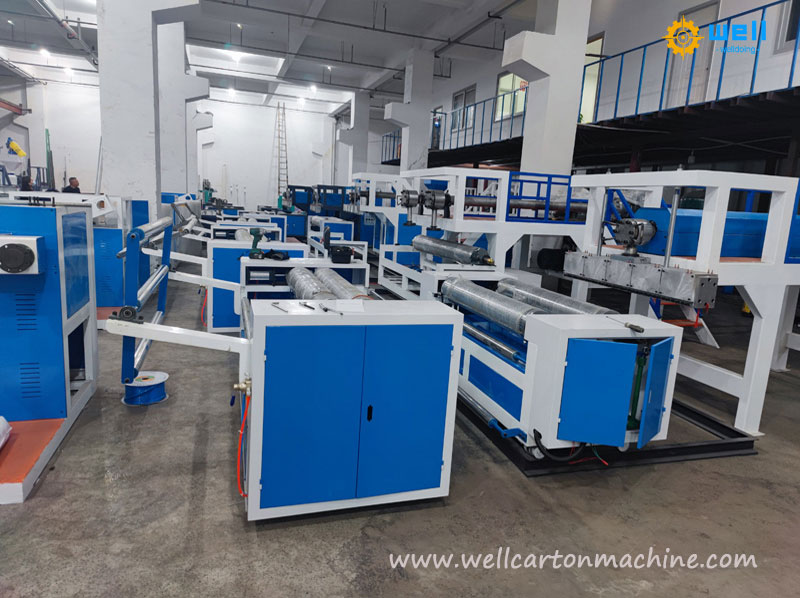

The whole production cycle of the air bubble film sheet making machine can be split into six core stages: feeding & plasticizing, extrusion, vacuum bubble forming, hot lamination & air sealing, cooling & traction, and automatic winding. Every component runs synchronously under PLC control to guarantee uniform bubble size, stable air retention, consistent film thickness and high output efficiency.

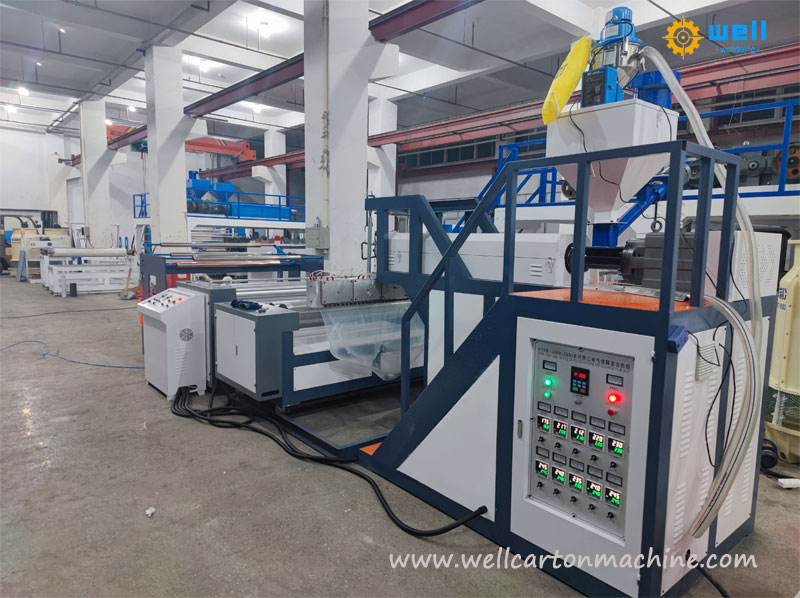

The first step is raw material feeding and plasticizing. Operators load LDPE or LLDPE plastic pellets into the feeding hopper of the air bubble film sheet making machine. Many models accept blended virgin granules and recycled PE scraps to cut raw material cost. Inside the extruder barrel, the rotating screw applies shear force and segmented heating to gradually melt and homogenize solid pellets into smooth, stable molten plastic melt. Precise temperature control across multiple heating zones prevents over-burning or incomplete plasticization, which are common causes of weak bubbles and cloudy film sheets.
Next comes flat extrusion through the T-die head. The homogenized melt is pushed forward and extruded from the wide T-die into two separate thin molten film webs: one for the bubble forming layer and the other for the flat backing layer. The die gap is finely adjustable to control sheet thickness, supporting custom bubble sheet specifications for light e-commerce packaging, heavy furniture protection, or shock-resistant electronic packaging. High-quality air bubble film sheet making machines adopt precision die casting to avoid film streaks, uneven edges and thickness deviation that ruin finished bubble sheets.
Vacuum bubble forming is the core working section of the air bubble film sheet making machine. The hot forming film wraps closely around the rotating bubble forming roller, which is drilled with dense, regularly arranged circular cavities. A powerful vacuum system continuously extracts air inside these cavities, pulling the soft hot film down into each cavity to form hemispherical bubble pits. Clean air is trapped inside these pits instantly before lamination. Mold rollers are interchangeable, so the same air bubble film sheet making machine can produce bubble sheets with 6mm, 10mm, 20mm, 25mm or 30mm bubble diameters to match different cushion demands.
Right after bubble shaping, the backing film and bubble layer enter the hot sealing roller group for lamination. Under stable pressure and proper temperature, the two hot film layers bond tightly around each bubble pit, locking air permanently inside individual pockets. This sealing quality decides whether your air bubble sheet can keep air for months without leaking. Poor synchronization here leads to bubble bursting, air leakage and low cushion performance. Advanced air bubble film sheet making machines install pressure sensors and speed synchronizers to match the linear speed of the forming roller, die output and traction unit automatically.
After sealing, the formed air bubble sheet moves to the cooling and traction section. Cooling rollers rapidly lower the sheet temperature to fix the bubble shape and improve tensile strength, transparency and flatness. The traction system pulls the bubble sheet forward at constant speed, keeping stable tension to avoid stretching, wrinkling or bubble collapse. Edge trimming devices cut off uneven side scraps, and an online recycle system sends trimmed edges back to the hopper for reprocessing, reducing waste and raising material utilization rate for your air bubble film sheet making machine production line.

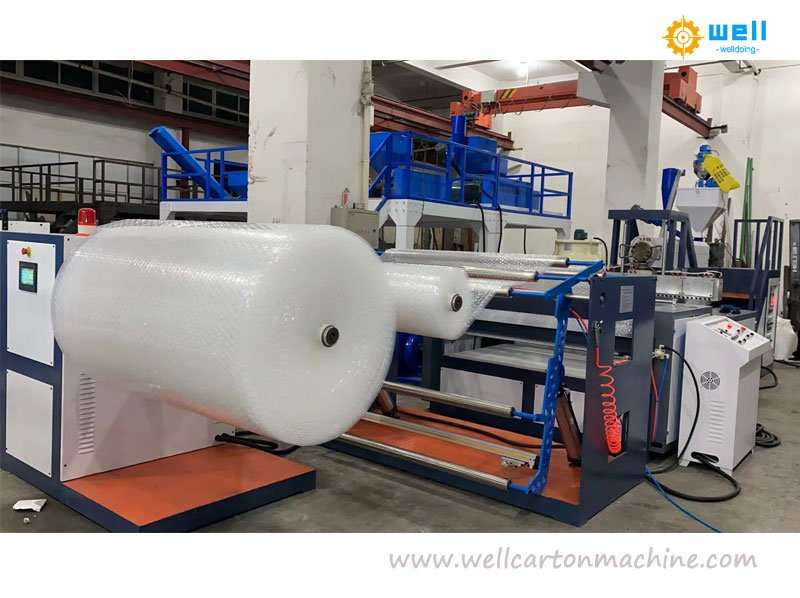

The final station is automatic winding. The finished air bubble sheet is guided to the double-shaft winder, which alternates between two winding shafts for non-stop roll change without halting the whole line. The winding system maintains constant tension to produce neat, tight bubble sheet rolls with consistent roll diameter. Some upgraded air bubble film sheet making machines add online slitting units, so you can output multiple narrow bubble sheet rolls from one wide master sheet at the same time, improving production flexibility for small-batch orders.
Besides the basic working flow, modern air bubble film sheet making machines integrate intelligent control systems. A touchscreen PLC panel lets operators set speed, temperature, vacuum level, bubble size and winding parameters easily. Optional upgrades include anti-static function, aluminum foil lamination, composite co-extrusion for 3-layer or 5-layer bubble sheets, and energy-saving screw designs to lower power consumption. CE-certified air bubble film sheet making machines run stably for 24-hour continuous production, requiring only one or two workers for supervision, greatly cutting your labor cost per kilogram of bubble film sheets.
Many buyers compare air bubble film sheet making machines by output range, energy consumption, maintenance difficulty and after-sales support. Our air bubble film sheet making machine balances stable vacuum forming, precise temperature control and low failure rate. It works well for startup packaging workshops and large-scale bubble sheet factories. Whether you need standard two-layer bubble sheets, anti-static bubble sheets or composite laminated bubble sheets, this bubble film extrusion line can adapt to your product plan.
To sum up, an bubble packing wrap machine works by combining plastic extrusion, vacuum forming, hot lamination, cooling and winding into one linked process. It captures sealed air pockets between two PE film layers to create lightweight, shock-absorbent bubble sheets. If you are searching for a high-efficiency air bubble film sheet making machine with customizable width, bubble size and automation level, contact us to get technical parameters, machine layout and factory test video of our bubble sheet production line.
