semi-automatic printing slotting die cutting machine function and characteristics:
1. Use the combination chain style on feeding table.
2. Adopt planet style digital electrical adjustment of 360 degree whatever operating and stop quickly and accurately.
3. Ink roller can be detached automatic from printing plate to avoid damage the printing plate when stop the machine.
4. All of the shaft roller are hard chrome, strength the hardness.
5. Ink roller equipped the separately turn device to prevent ink dried when machine stop.
6. Pneumatic lock , electric divides.
7. The module design, multi-color printing units in any combination.
8. With pneumatic diaphragm pump to supply ink.
9. Main transmission gears are made by 45#steel after high frequency quenching.
10.Drive part adopts sprinkle lubricating system, improve the precision and serve life of machine

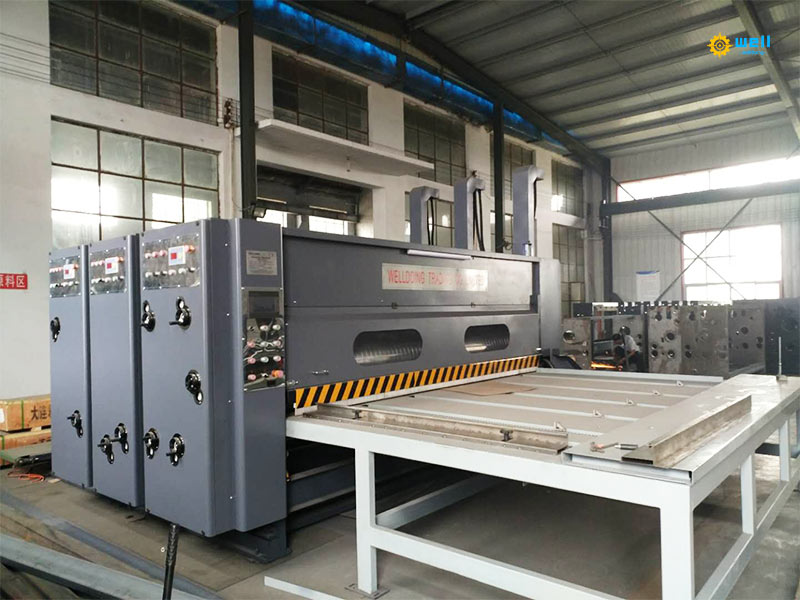

Main Structure of Chain feeder multicolor printer slotter die cutter machine
1.Printing main frame: the supporting base of the entire machine.

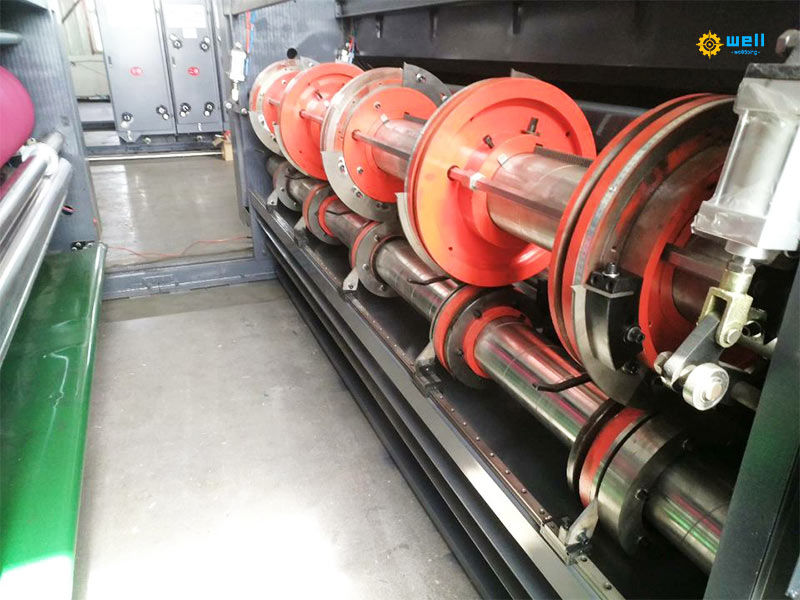

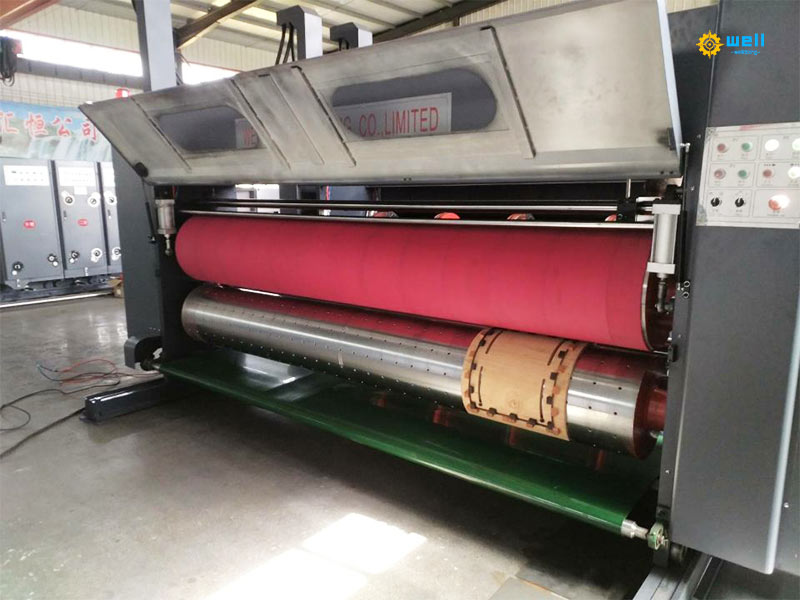

2.Plate cylinder mechanism: Installs the printing plate to complete the transfer of graphics and text.
3.Rubber roller (ink roller): Ink application and distribution.
4.Imprinting workbench: Place the cardboard, manually feed the material, and apply coloring with the roller for imprinting.
5.Ink supply system: ink tank, ink distribution unit.
6.Transmission and drive components: motor, gears, belts, driving the roller to rotate.
7.Adjustment mechanism: pressure adjustment, spacing adjustment, and front-back position adjustment.
8.Drying Module (Optional): Dries ink after printing to prevent smudging.
9.Control Panel: Start/Stop and Speed Regulation.
Our Service:
Pre-Sales Service
1. Inquiry and consulting support.

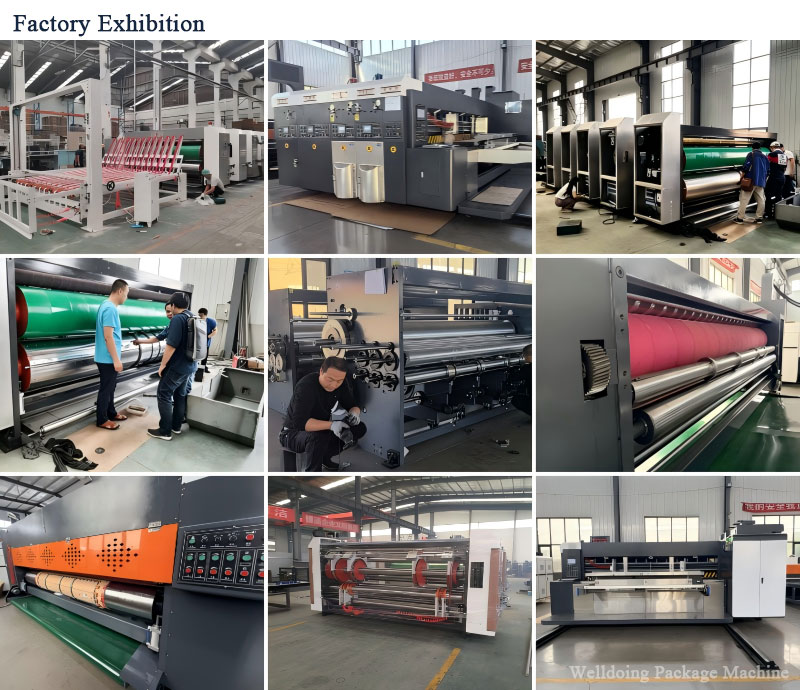

2.View our Factory.
After-Sales Service
1. Installation, training how to use the machine and technical support.
2. Engineers available to service machinery overseas
If you are also interested in this machine,please don’t hesitate to contact us:
