WELLDOING TRADING Co. Ltd. is a manufacturer + sales and after-sales company, which is mainly engaged in large-scale semi-automatic chain-bar water-based printing machine, automatic paper box printing and slotting die-cutting machine, high-speed high-definition paper box printing and slotting die-cutting machine, 2 layers corrugated production line, box-sticking machine, Tying Machine ,Automatic Partition Assembler Machine, paper tube making machine, sewage treatment equipment and so on.
Options:
Computer Control, Touch Screen Setting Control, Phase Adjustment, Automatic Zero Return, Memory Function
Frequency modulation control of main motor
Leading edge paper feeding

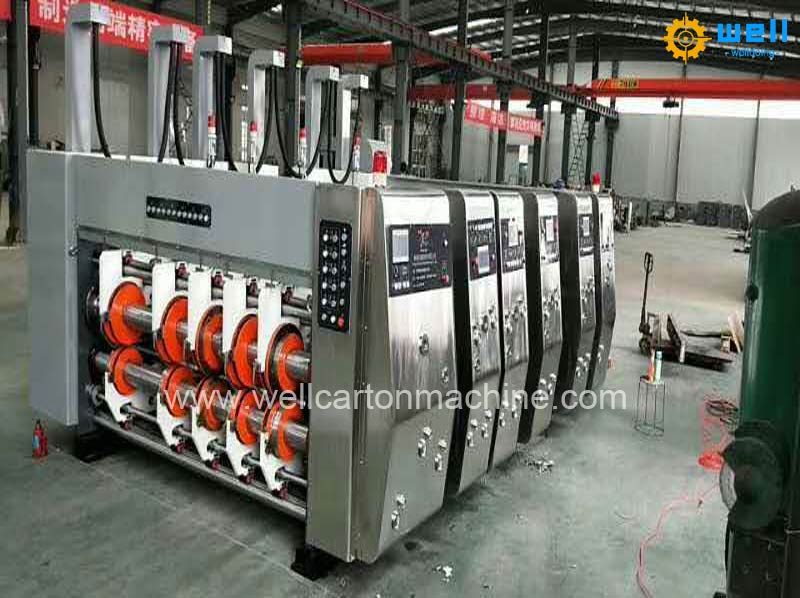

Printing Department
1. Using hanging plate printing system, the plate-changing operation is convenient, and pedal switch is installed to facilitate hanging plate.
2. The circumferential adjustment mechanism of printing drum adopts planetary gear structure, and the hardness of the tooth surface reaches HRC58-60.
3. Printing phase adopts frequency converter, touch screen control and electric digital 360 degree adjustment (operation, stop state can be adjusted). Inking roll adopts high precision hard chromium wear resistant mesh roll.
4. Rubber rollers are coated with wear-resistant rubber on the surface of steel pipes. The ink transfer effect is good after medium and high special grinding.

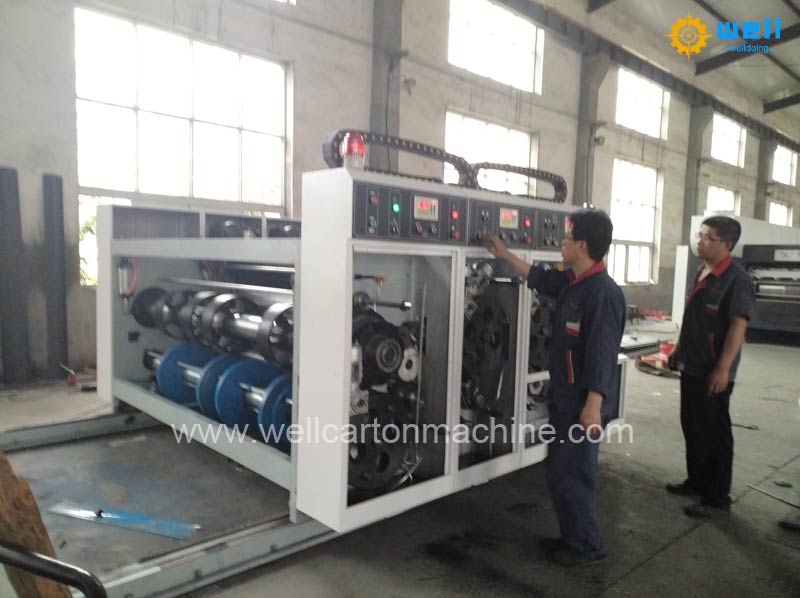

Slotting Department
Slotted part
Line-pressing wheel. Paper feeding wheel and slotting tool base are guided by rolling linear guideway, moving smoothly and positioning accurately (high-grade machine)
The slotting phase adopts frequency converter, touch screen control and electric digital 360 degree adjustment (adjustable in running and stopping state), and has reset function. The order control panel is equipped with touch screen, which can control paper feeding, printing and slotting parts. It is easy to operate.
Medium knife moving, can produce large two-piece carton (special order)
Knife axle and paper feeding wheel axle are polished by hard chromium plating and have long service life.
Punching device can be equipped according to user's needs

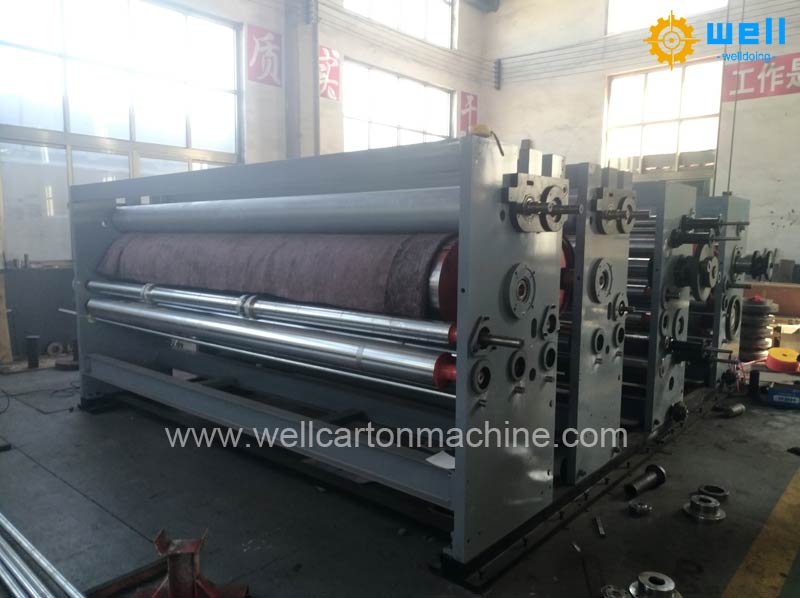

Die Cutting Department
Die Cutting Part
Die-cutting Phase, Computer and Electric Digital Display Control
Electric Digital Display Adjustment of Die Cutting Pressure Gap
Automatic displacement mechanism of rubber cushion roll to prolong the service life of rubber cushion
Imported Quick Change Rubber Cushion, Convenient Change, Wear Resistance
Precision "controlled" speed difference compensation system to ensure cross-cutting accuracy
Rubber pad grinding correction mechanism, increase the usage rate of rubber pad, reduce consumption
Paper Receiving Department
Paper arm can be operated manually or automatically, with an insurance mechanism to prevent sudden drop of paper arm and ensure the safety of operators.
Bed table lifting strong chain drive
The stacking height is 1600 mm, 1800 mm and 2000 mm.
