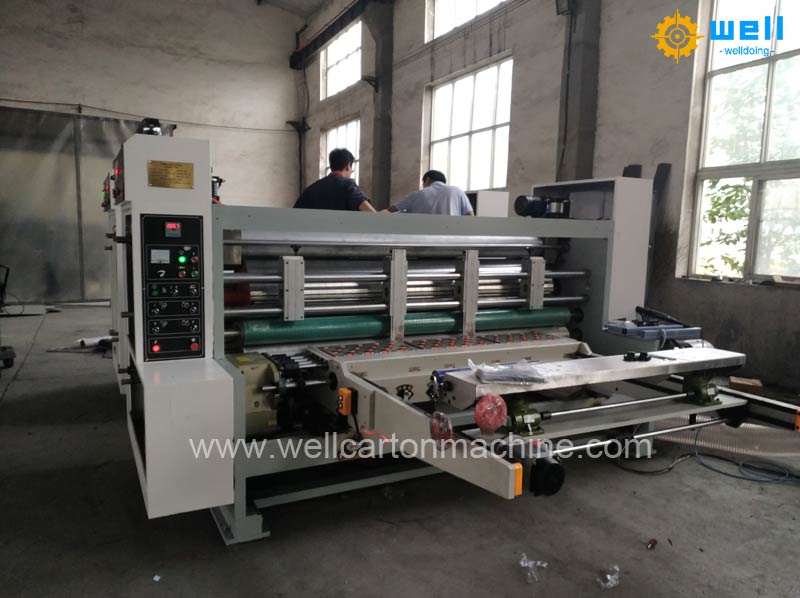

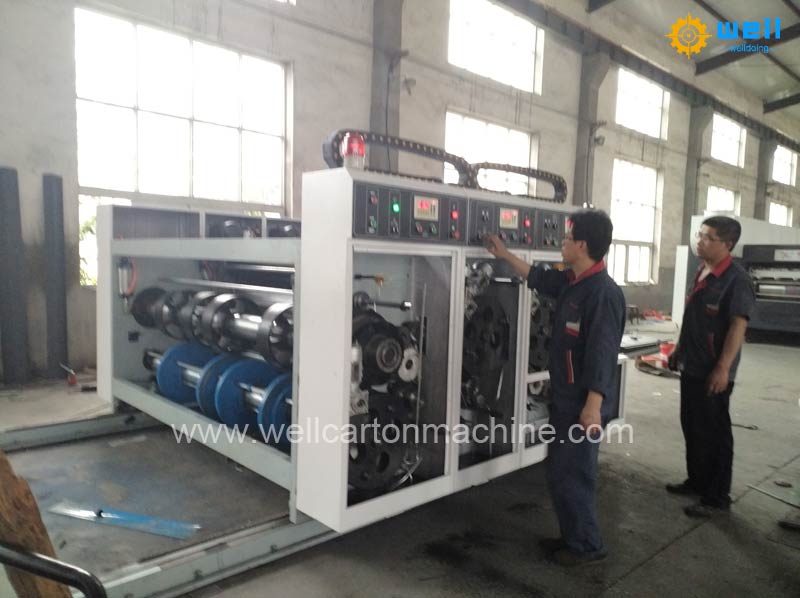

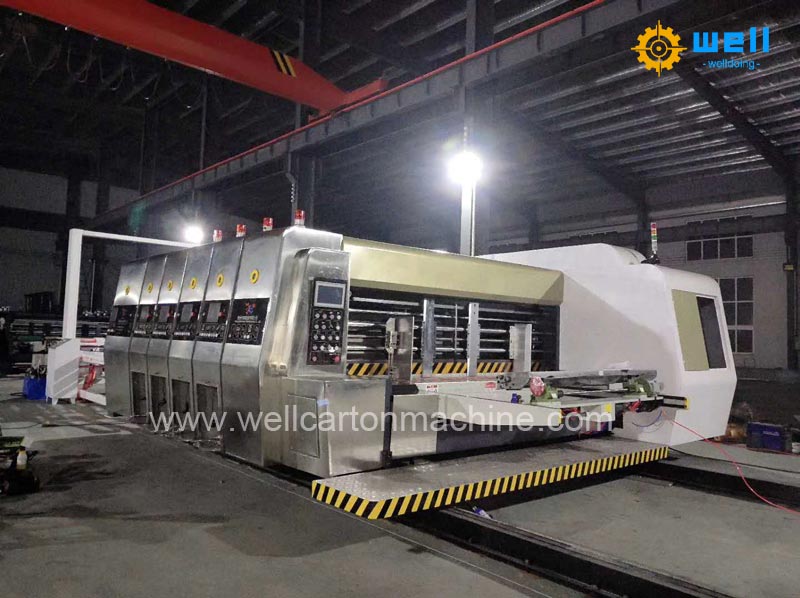

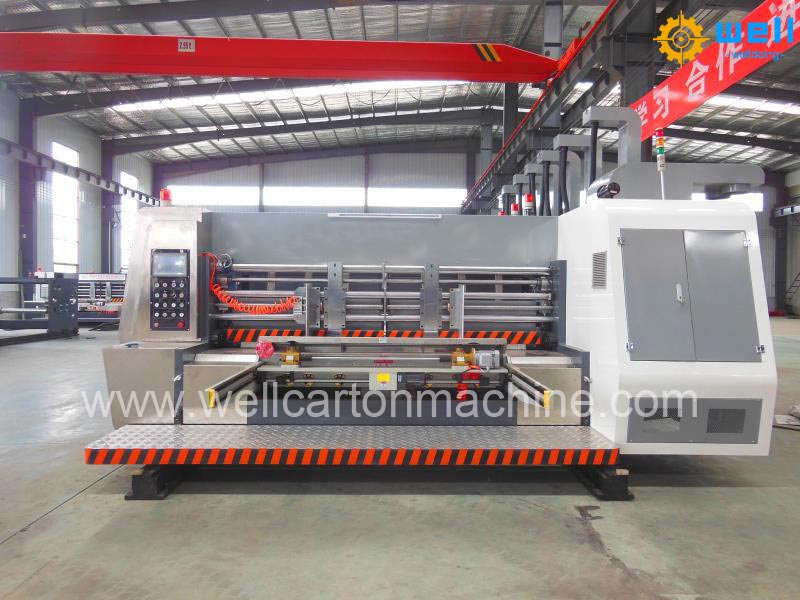

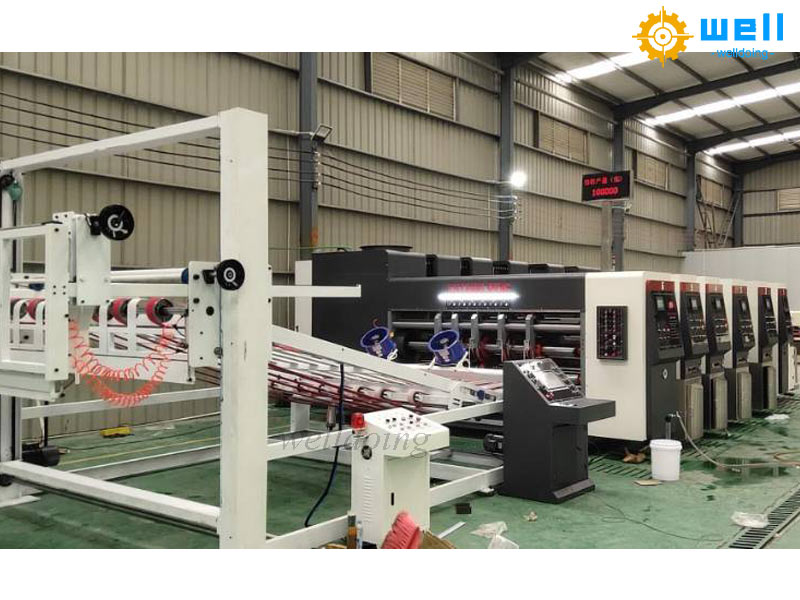

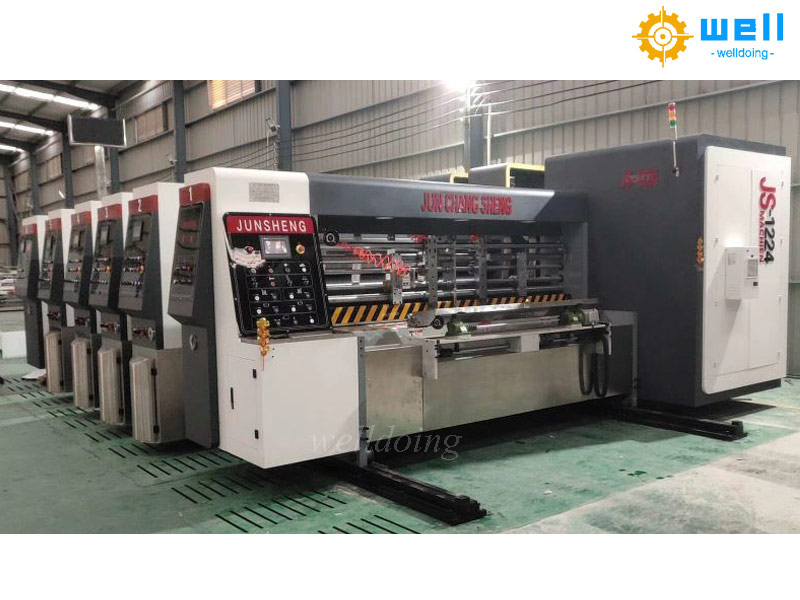

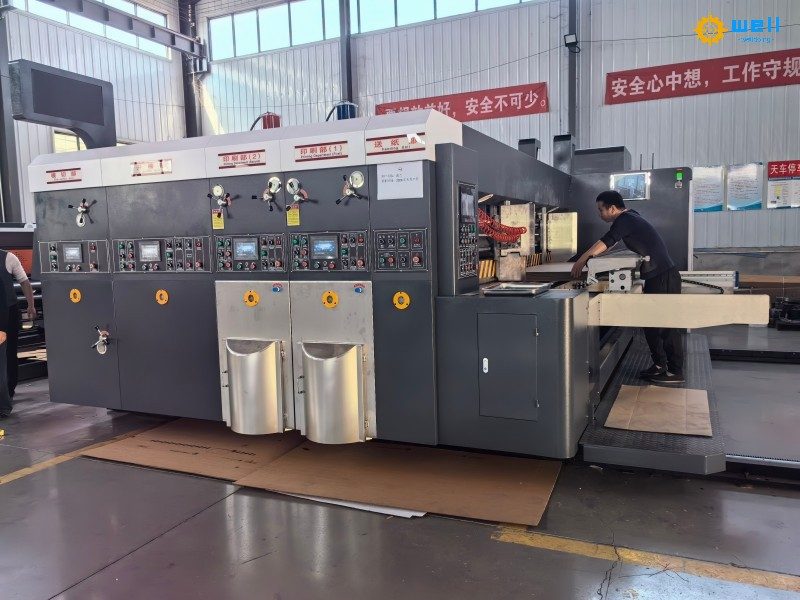

Characteristic of the automatic box printing die cutting slotting machine :

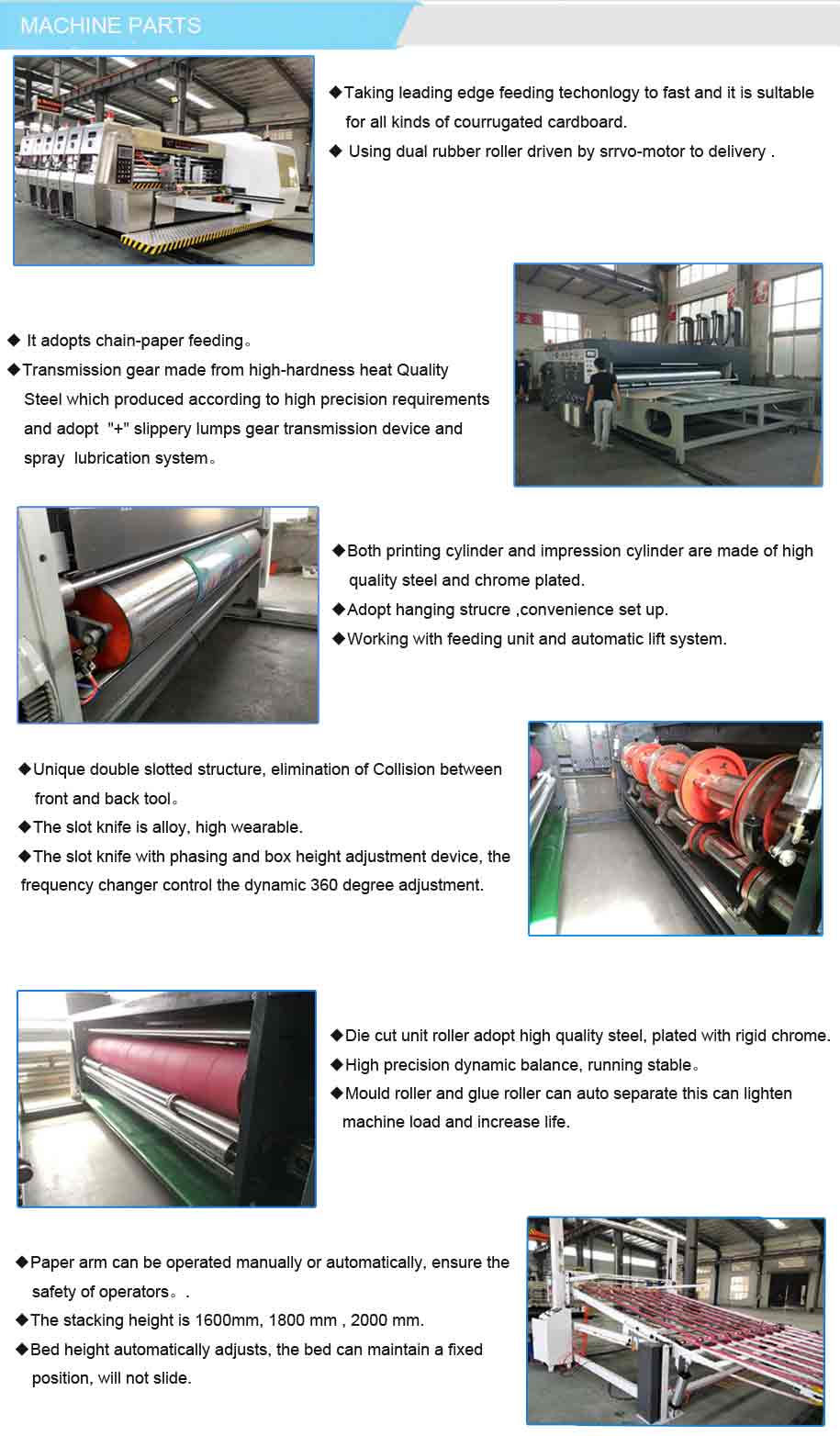

1.The machine consists of five parts: paper feeding, printing, slotting, die cutting and stacking.

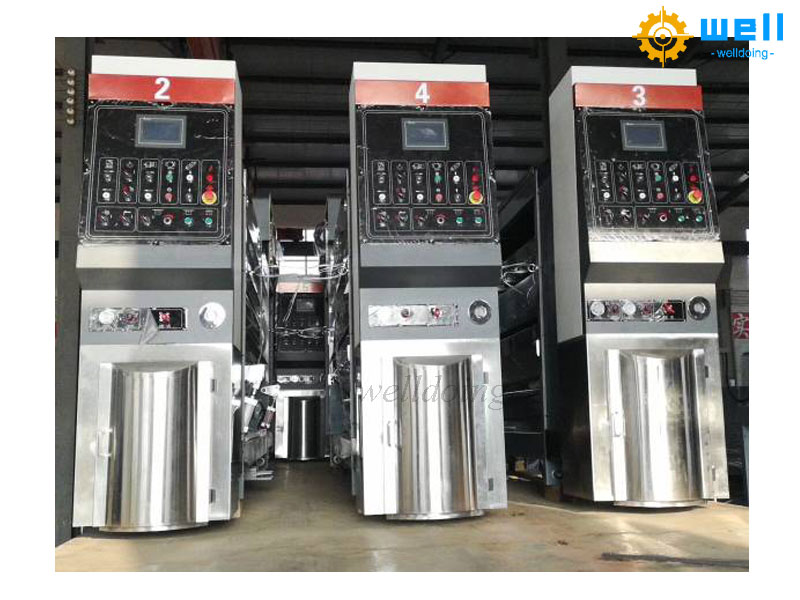

2.Paper feeding department adopts advanced negative pressure adsorption and kick-back paper feeding with adjustable air volume.
3.The printing department adopts hanging plate roll, which can shorten the time of plate loading.
4.The slotting part of the electric adjusting box height, phase and slotting tool base move left and right, and synchronize with the press wheel.
5.Aerodynamic lifting of front end and photoelectric tracking of rear end of stacking part can automatically rise and fall
6.Alarm system to ensure the safety of operators.
The advantages of the roll-to-roll printing method.
● The front edge features an adjustable feeding method, and the electronic adjustment of the feeding stroke can reduce the pressure on the paper traction rubber roller.

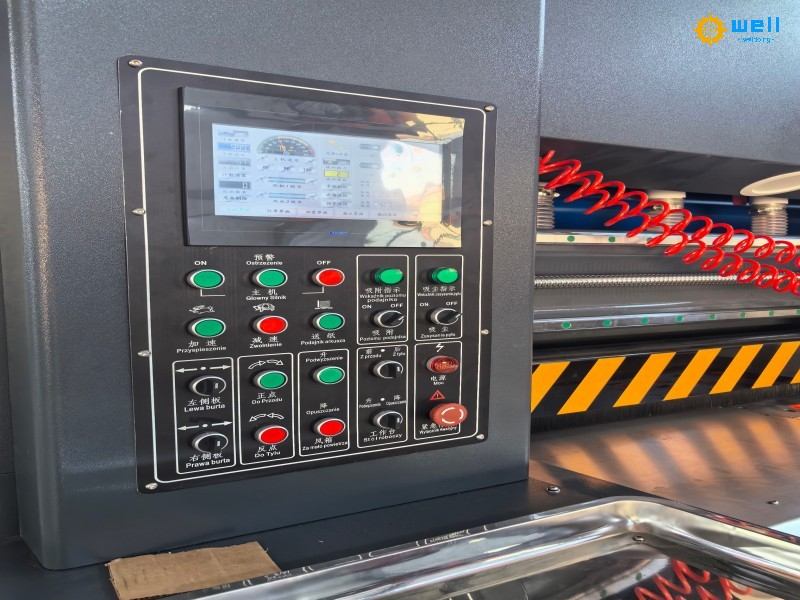

● Touchscreen PLC control, featuring automatic counting, speed display, automatic lifting and lowering plates, phase adjustment, and order storage functions.
● Board surface cleaning memory function: After pausing operations during running to clean the board surface, the automatic memory reset eliminates the need for retesting.
● Host Startup Protection: The device cannot start when the host grounding lock is not engaged, preventing accidental operation.
The primary control electrical equipment utilizes products from renowned manufacturers such as Siemens, Schneider, and Omron.
The equipment features a mobile modular design, with the reducer driven by an electric motor. A continuously ringing alarm ensures the safety of operators and maintenance personnel, while also incorporating an automatic pneumatic wedge locking device.
The main power of the entire machine adopts variable frequency drive, featuring energy-saving configurations.
● All drive rollers are made of high-quality steel, undergo quenching and tempering treatment, are chrome-plated, and precision-polished.
The main transmission gear is made of 20CrMnTi alloy steel through heat treatment and grinding, achieving a precision of grade 6. The gear is connected to the shaft via a shrink fit.
The bearings are manufactured using components produced in Harbin, Luoyang, and Wafangdian, among other locations.
● All passive rollers are driven by high-precision bearing cross-slider mechanisms.
The operation station and the protective cover on the operating side are designed independently to facilitate maintenance inside the gearbox.
The transmission gears are lubricated with oil pump oil; the automatic liquid level balancing device in the gear oil tank ensures consistent oil levels across all units.
● Each component is equipped with a pneumatic braking device to ensure the reset accuracy of the main transmission engagement point and phase after equipment separation.
The paper feed gap adjustment knob features a self-locking adjustment structure with a dual-pole parallel shaft worm gear box.
● Each phase employs a three-position planetary gear mechanism driven by a braking motor, with a dedicated phase meter to display the adjustment value; the phase reset memory can be reset to zero.
● Emergency Stop Protection: Equipped with an emergency stop switch for additional safety.
● Equipped with a zero-point adjustment device for quick version calibration.
FAQ:
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2.What's your payment term?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3.Which country have you sold before?
North America,South America,Egypt,South Africa,Southeast Asia and India.
4.Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
5. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from
the very small thing(even a small screw we will choose the best quality) from the beginning.
6.What about the after-sales service?
After you buy the machines,we can go to your country to install and repair .
