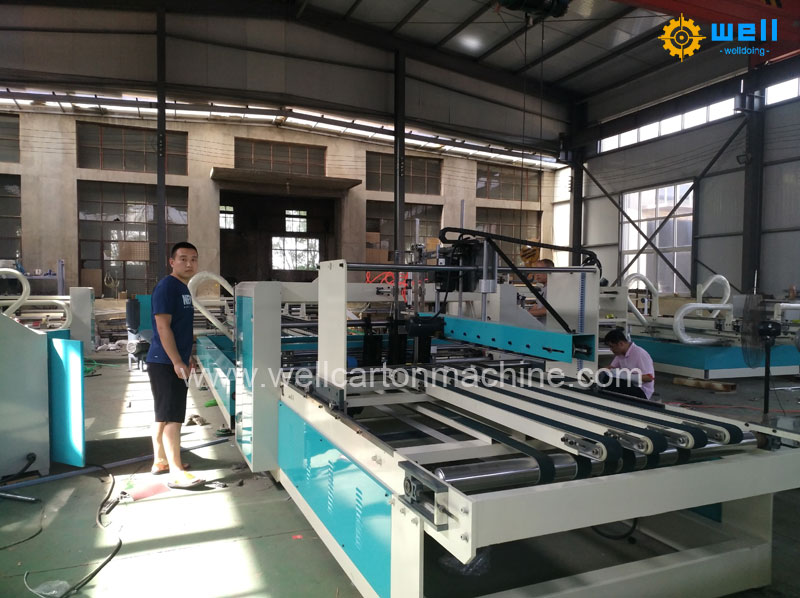

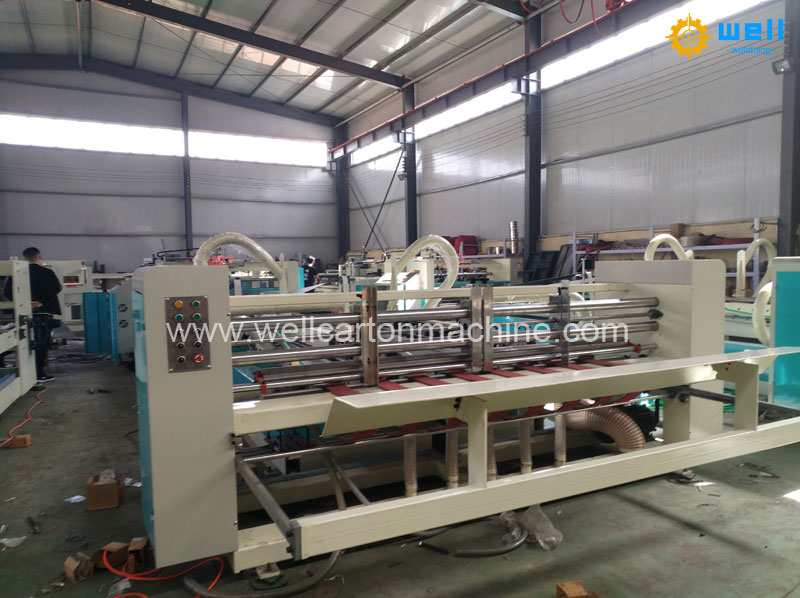

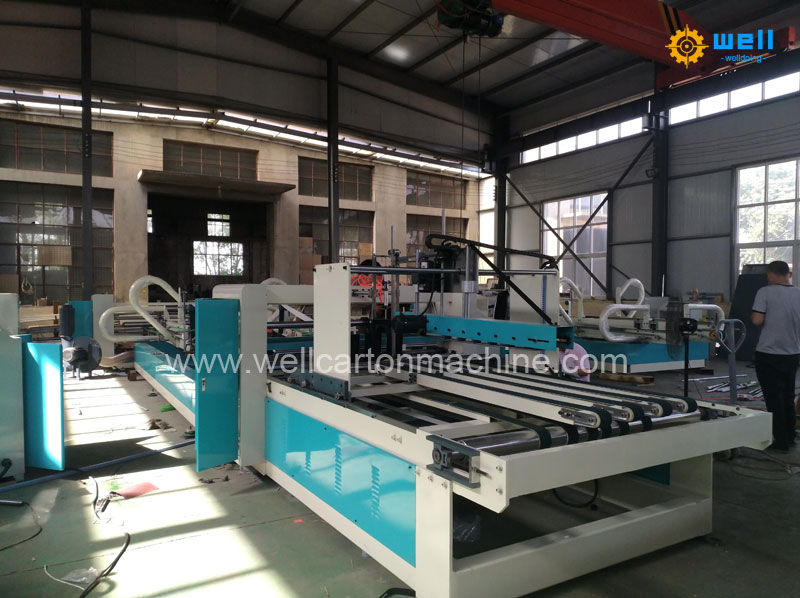

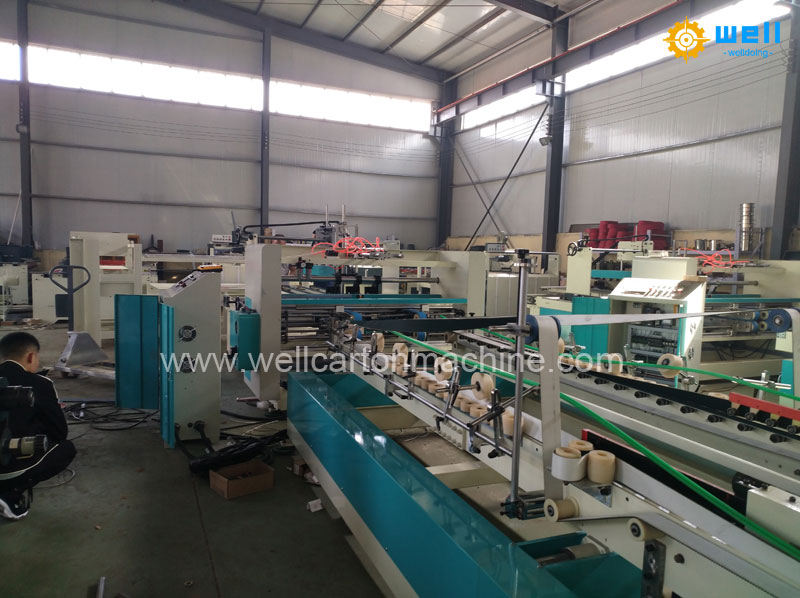

The characteristics of Automatic folding gluing machine: WD-series automatic folder gluer machine is formed by three parts: vacuum paper feeding part, coated folding part and counting stacking output part. Digital display control, PLC computer amplitude modulation, double frequency conversion synchronous operation, with simple, fast, reliable and accurate control mode. Automatic paper feeding, automatic glue folding, automatic counting, automatic stacking output, average folder gluer box speed 150 m / min, high speed energy saving, saving labor cost.
I, the paper supply department
Adopt belt leading edge suction air to feed paper, accurate and reliable.
The use of high-grade electromagnetic clutch and electromagnetic brake system, so that the paper supply can be controlled separately, the operation time is single and reliable.
The height of the press wheel can be adjusted, and the suitable thickness of the paperboard is 2 × 8 mm.
With folding part linkage, frequency conversion speed regulation, paper supply speed 0 ≤ 150 m min.
The front baffle and paper belt of the feed can be adjusted around.
II. Glue folding part :
1.The main motor adopts frequency conversion speed regulation system without noise, flexible and stable speed regulation .2. Adopt imported high friction belt conveying cardboard, automatic superposition.3. Adopt stainless steel wheel glue coating, uniform amount of glue, no trouble and save glue.4. Folding part is equipped with cardboard correction device, and indentation correction device.5. Folding part has two rows of adjustable inner positioning guide wheel system, forming precision is higher.
III, count stacking department
Automatic stacking neat output.
The main motor of the technical department is variable frequency speed regulation, adjustable speed, stable and reliable start-up.
Use belt to transport cartons, stacked neatly, speed 0 ≤ 130 m min.
Using pat board to hit large carton, it has the function of correcting deviation, and the deviation is very small.
Counting and introducing pneumatic mode, PLC electronic control, reliable, accurate and fast.
Using PLC programming controller and touch screen digital control, the operation is simple, the action is reliable and does not stop the input data, and the automatic counting.
The output part adopts the synchronous compression mode of the bottom conveyor belt and the upper compression belt, which makes the finished carton stick firmly and neatly and without dislocation output.
