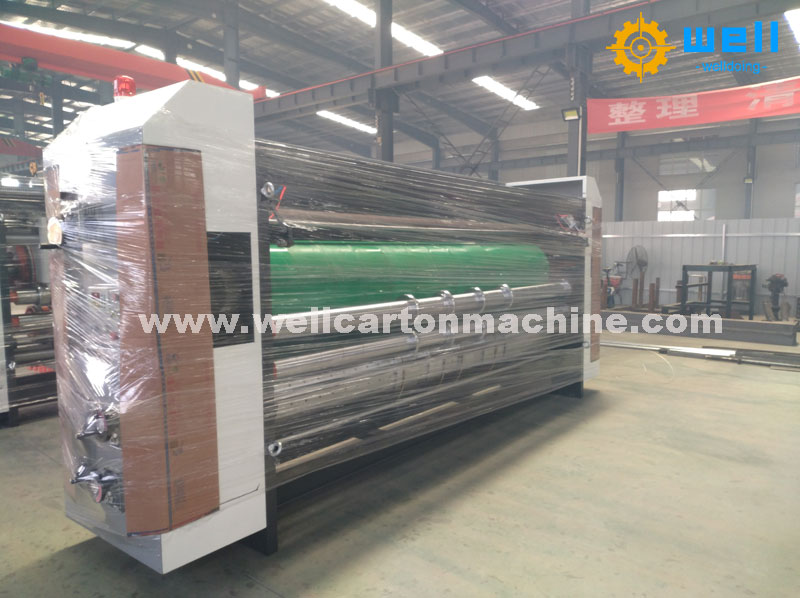

When the circular-pressing circular die-cutting machine is in operation, the paper feeding roller is used for conveying the paper board between the pressing plate cylinder and the pressure roller, and the two are clamped on the roller for die cutting, and the die-cutting plate cylinder is rotated for a week, so that a working cycle is realized.
Circular die cutting machine is generally divided into hard cutting method and soft cutting method. The hard cutting method refers to the hard contact between the die cutting tool and the pressure drum surface, so the die cutting knife is easy to wear. The soft cutting method is to cover the surface of the pressure drum with a layer of engineering plastics. When cutting, the cutter can be cut, which can not only protect the cutting tool, but also ensure the cutting, but it needs to change the plastic layer regularly.
The plate and the press-cutting mechanism of the circular-pressing circular die-cutting machine are all plate-shaped, and when the plane of the plate and the pressing plate is in the vertical position, the vertical flat-flattening die-cutting machine is used. When the die-cutting machine is in operation, the pressure plate presses the plate through the heat-transmitting dynamic pressure. the moving track of the pressing plate can be divided into two types, one is the swing of the pressing plate about the fixed hinge, so that the angle between the working surface of the pressing plate and the template surface at the moment of the start of the compression molding, so that the die-cutting plate is cut into the lower part of the paper board earlier, This makes it easy to cause the lower part of the die plate to be too heavy and the upper part is not cut through. In addition, the force component of the die-cutting pressure also causes the lateral displacement of the cardboard. When the die-cutting machine of the other pressure plate moving mechanism is in operation, the pressing plate is driven by a connecting rod, a cylindrical roller is used as a fulcrum, the flat guide rail of the machine base is swung, and when the working surface of the pressure plate is inclined to a position parallel to the die pressing plate, the pressing plate is parallel to the die-cutting plate in a translational manner.
