In the modern packaging and logistics industry, product edge protection is a crucial link to reduce cargo damage during transportation, storage and handling. As a core automated packaging equipment, the automatic Paper edge protector machine has become a mainstream choice for packaging enterprises worldwide due to its high efficiency, low consumption and stable performance. This article will deeply analyze the working principle, core operation steps and technical advantages of the paper edge protector machine, helping industry practitioners fully understand its operating logic and application value in automated packaging production lines.

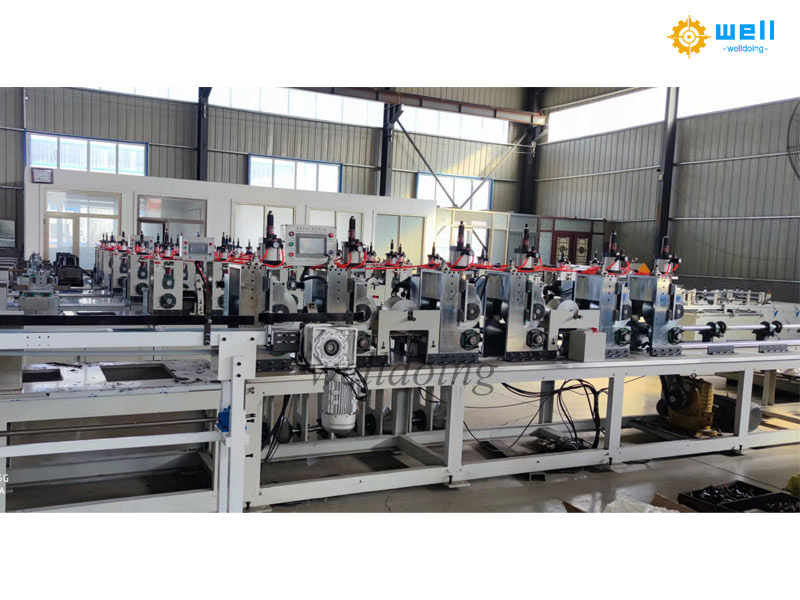

The paper edge protector machine is a professional automated mechanical device specially used to produce paper edge protectors (also known as paper corner guards). It can process multi-layer kraft paper raw materials into standard L-shaped, U-shaped and flat edge protection boards in one continuous process. Different from traditional manual production and semi-automatic equipment, the fully automatic paper edge protector machine integrates feeding, gluing, laminating, forming, pressing, fixed-length cutting and finished product stacking, realizing unmanned continuous production, which greatly improves the output and dimensional accuracy of paper edge protectors.

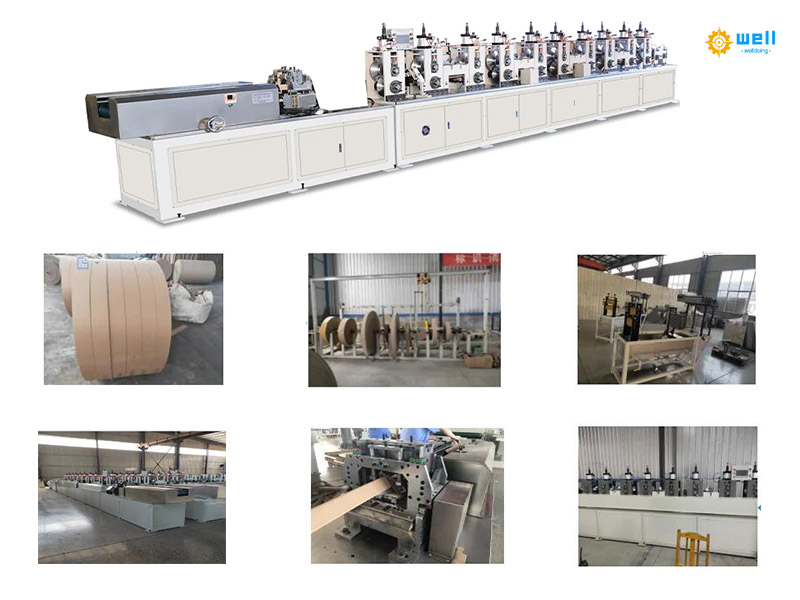

The complete working process of the automatic paper edge protector machine is systematic and standardized, with each link closely connected and intelligently controlled. The first step is automatic paper unwinding and feeding. The equipment is equipped with a multi-station paper roll unwinding rack, which can stably release multiple layers of kraft paper raw materials at a constant speed. The built-in tension adjustment system of the machine effectively avoids paper deviation, wrinkling and breakage, ensuring the continuity and stability of raw material supply, which lays a foundation for high-quality finished paper edge protectors.
The second core step is intelligent gluing and multi-layer lamination, which determines the structural strength of finished paper edge protectors. The Paper edge protector machinery adopts an adjustable circulating gluing system, supporting hot glue and cold glue dual-mode coating. The roller-type uniform gluing technology ensures that the adhesive is evenly covered on the surface of each paper layer without glue accumulation or missing coating. Multiple layers of glued kraft paper are tightly laminated through high-pressure synchronous rollers, forming an integrated thick paper board with strong adhesion, effectively improving the compression resistance and toughness of the edge protector. Precision forming and constant-pressure shaping is the key process to determine the shape specification of paper edge protectors. After lamination, the thick paper board is automatically guided into the precision forming mold group. Through progressive rolling and bending of multiple groups of forming rollers, the flat paper board is accurately shaped into standard 90-degree L-shaped, U-shaped or customized special-shaped edge protectors. The equipment is equipped with a CNC micro-adjustment system, which can flexibly adjust the forming angle, thickness and width according to production requirements, realizing flexible production of multiple specifications of paper edge protectors on one machine.
Subsequent constant-pressure curing and fixed-length cutting ensure the uniformity of finished products. The shaped paper edge protector passes through the constant-pressure curing section, which accelerates the adhesive curing and stabilizes the overall structure of the edge protector to avoid deformation. Then, the high-precision servo cutting system performs fixed-length cutting according to the preset parameters. The cutting error is controlled within the micron level, which effectively solves the problem of uneven length of traditional manually cut edge protectors. Finally, the qualified finished paper edge protectors are automatically output and stacked, realizing one-stop production from raw materials to finished products.
In terms of core control, the advanced PLC intelligent control system is the brain of the automatic paper edge protector machine. Operators only need to set parameters such as production speed, edge protector size, paper layer number and gluing amount through the touch screen. The equipment can realize fully automatic unattended operation, with real-time monitoring of operating status, automatic alarm for faults and automatic shutdown protection functions. This intelligent design not only reduces manual operation errors and labor costs, but also ensures long-term stable and high-efficiency operation of the equipment.
Compared with traditional processing equipment, the modern paper corner protector machine has significant advantages in production efficiency, product quality and cost control. Its continuous automated production mode can increase production efficiency by 3-5 times compared with semi-automatic equipment, with zero waste of raw materials. The produced paper edge protectors have uniform specifications, strong compression resistance and environmental protection and recyclable features, which are widely used in carton packaging, furniture packaging, hardware logistics, building materials transportation and other industries, effectively protecting product edges from collision and extrusion damage. In conclusion, the automatic Kraft Paper Corner Board Machine relies on a mature and efficient full-process automated working system, realizing intelligent, standardized and high-yield production of paper edge protectors. With the continuous upgrading of global packaging automation standards, this high-efficiency and energy-saving packaging machinery will become an indispensable core equipment for modern packaging enterprises, bringing higher economic benefits and more reliable packaging solutions to the industry.
