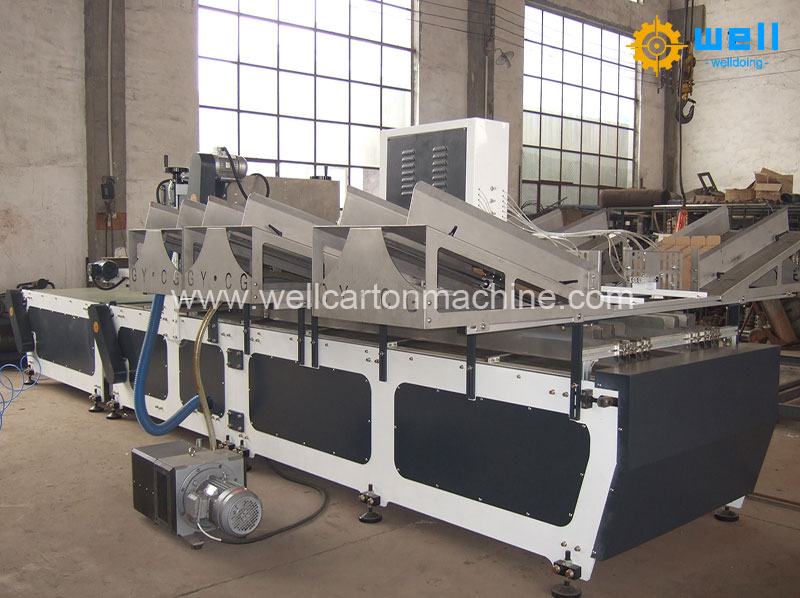

The automatic partition assembler comprises a frame, wherein: the frame is provided with a main transmission device, and the main traveling motor is arranged under the frame, and is connected with the main transmission device, and the transmission belt of the main transmission device a plurality of push bars are disposed thereon; a front portion of the frame is provided with a guide groove and a longitudinal paper feed portion, the guide groove is located below the longitudinal paper feed portion, and a rear portion of the frame is provided with a lateral insertion portion;
The longitudinal paper feeding portion includes a plurality of station suction paper feeding devices, and the air suction paper feeding device includes a support rail perpendicular to the frame and fixedly coupled to the frame, the upper surface of the support rail The paper feed bottom plate is obliquely disposed, and is connected to the support rail by a rear slider and a middle slider. The top of the paper feed bottom plate is provided with a longitudinal paper feeder for pushing the longitudinal knife card, and the bottom of the paper feed bottom plate is disposed The utility model has a sliding rod and a longitudinal insertion motor, wherein the longitudinal paper feeder is movably connected to the sliding rod through a linear bearing, and the linear bearing can slide back and forth along the length direction of the sliding rod to drive the longitudinal paper feeder to move; the paper feeding bottom plate Vertical paper feed a cavity is movably connected to the support rail through a front slider, and a longitudinal pipe is connected to the longitudinal paper feed air chamber;
a longitudinal paper feed sun wheel capable of longitudinally feeding paper is disposed at a rear portion of the longitudinal paper feed air chamber, a paper feed motor, wherein the paper feed motor is connected to the longitudinal paper feed sun gear; a lower portion of the front end of the paper feed bottom plate is provided with a longitudinal paper feed roller, and the longitudinal paper feed roller is connected to the longitudinal feed motor; A feeding photoelectric switch for detecting the position of the pushing bar is provided, and the feeding photoelectric switch is connected with the signal of the paper feeding motor. When the feeding photoelectric switch detects the pushing bar, the paper feeding motor works, the longitudinal paper feeding sun wheel rotates, and the paper feeding is performed in the longitudinal direction. Under the action of the wheel, the longitudinal knife card is inserted into the guide groove, is caught between the two push rods, and is transmitted by the main transmission device; the lateral insertion portion includes a frame and a chassis, and one side of the frame is provided with a column The wind chamber is laterally inserted into the air chamber, and the air duct is connected to the horizontal insertion air chamber; the bottom frame is provided with a belt running device for pushing the lateral knife card to move, and the belt walking device is provided with a lateral paper feeder, and the bottom frame is An insertion bottom plate for supporting the transverse knife card is disposed on the same side of the lateral insertion air chamber, opposite to the lateral insertion air chamber; the bottom end of the lateral insertion air chamber and the insertion bottom plate are adjacent to the lateral insertion air chamber One end of each side is provided with an opposite lateral paper feed roller, and the horizontal insertion air chamber is internally provided with a lateral sun wheel; the horizontal insertion air chamber is provided with a horizontal insertion motor, which is connected with the lateral sun gear; the longitudinal paper feed The end of the portion is provided with an alignment clamping device for clamping the longitudinal knife card and aligning the plurality of longitudinal knife cards, the alignment clamping device being located at the lower end of the lateral insertion air chamber, and the opposite two transverse paper feed rollers The gap formed between the two is aligned, and the horizontal insertion portion is provided with a horizontally inserted photoelectric switch for detecting the longitudinal knife card, and is connected with the horizontal insertion motor signal. When the horizontal insertion photoelectric switch detects the longitudinal knife card, the horizontal insertion motor moves, and the horizontal direction The sun wheel rotates, and under the action of two transverse paper feed rollers, the transverse knife card is inserted into the longitudinal knife card to complete the card insertion action, and then the push bar of the main transmission device is transmitted to the next station.
