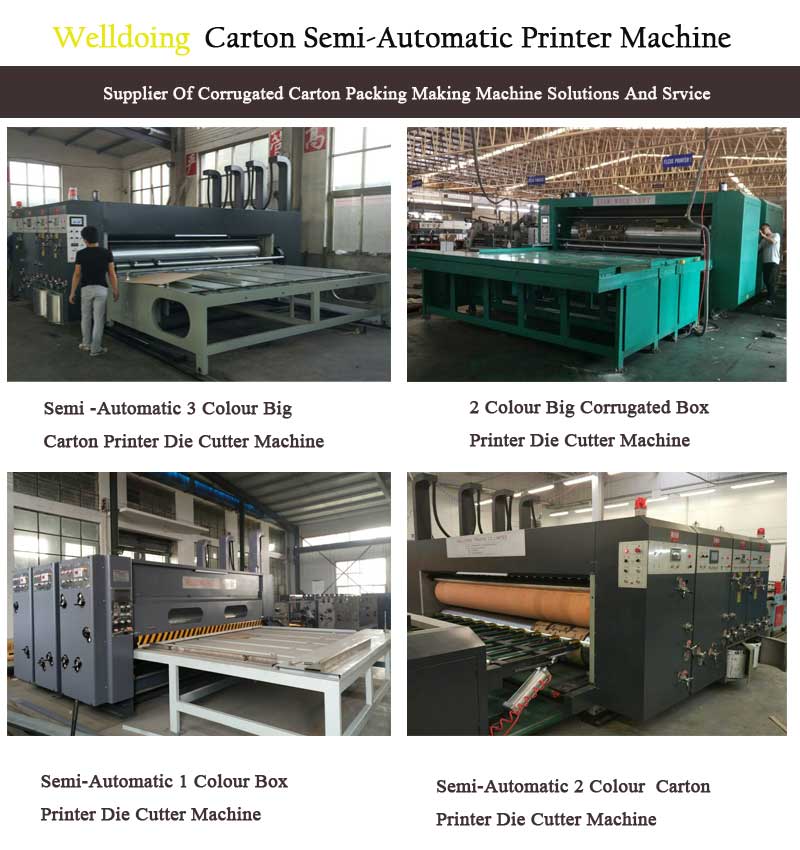

When corrugated carton manufacturers evaluate flexo converting equipment, the Chain feeder printing slotting die cutting machine remains a trusted workhorse for stable, cost-effective box production. Many new converters compare vacuum feed printers with chain feed type printer slotter die cutter units and wonder why countless medium and small carton factories, packaging job shops, and regional corrugated plants keep selecting chain feeding models for daily orders. If your workshop runs mixed batch carton jobs, handles warped, thick, or irregular corrugated sheets, and wants an all-in-one machine for flexo printing, slotting, creasing and rotary die cutting, this chain feed printer slotter die cutter deserves your close consideration.

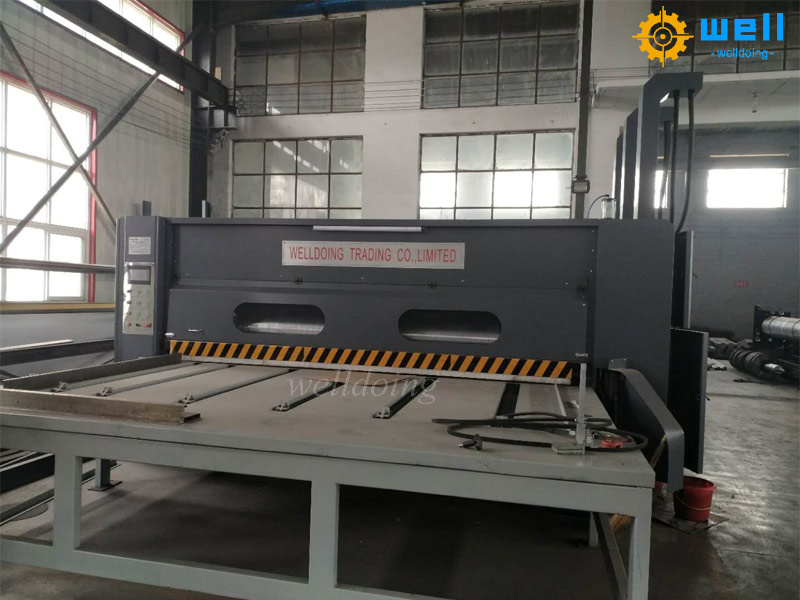

The biggest strength of a chain feed type printer slotter die cutter lies in its reliable feeding system, which is also the core difference from vacuum suction feed machines. The chain feeder grips cardboard sheets steadily through side positioning guides and synchronized chain tracks, rather than relying on air suction to hold board surfaces. For 3-ply, 5-ply, even 7-ply heavy corrugated boards that tend to bend, warp or have uneven surfaces, the chain feeding structure avoids common feeding failures such as sheet slipping, double feeding, and misregistration that often trouble vacuum feeders. Consistent sheet delivery directly stabilizes the whole production line: every cardboard enters the printing station at the same angle and position, so print registration stays uniform batch after batch. That means fewer blurred logos, offset barcodes and inconsistent slotting sizes, which greatly reduces carton rejection rates for your finished packaging.

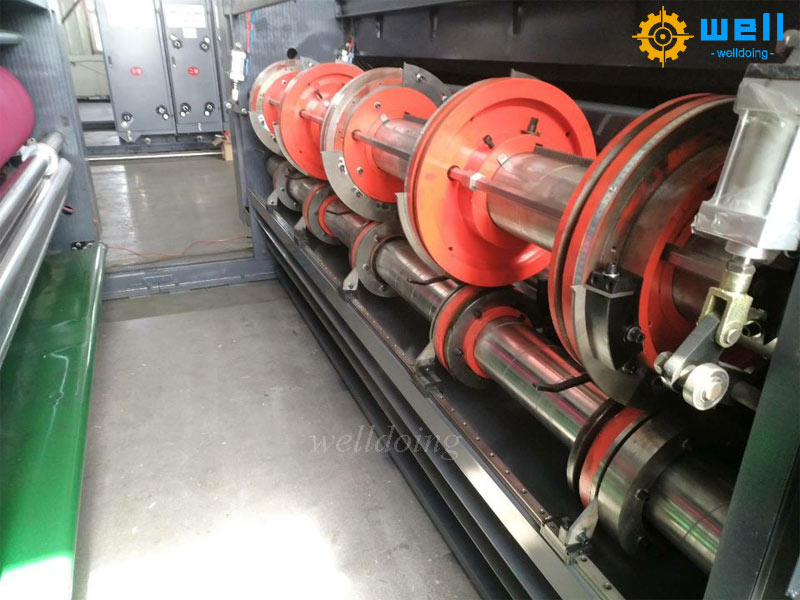

As an integrated multi-function machine, the Chain feeding cardboard printing die cutting machine combines flexo printing, slotting, creasing and rotary die cutting in one compact frame. Instead of buying separate printing machines, slotters and die cutters and arranging multiple workers for transfer between stations, this all-in-one unit finishes blank carton boards into pre-folded box blanks in one single pass. It supports 1-color, 2-color, 3-color and 4-color water-based flexo printing to meet brand logo, shipping mark and graphic packaging demands. The slotting section accurately cuts box joint notches and crease lines for easy folding, while the rotary die cutter punches hand holes, ventilation cutouts, special lock bottom shapes and custom carton outlines. This integrated workflow cuts down intermediate handling, saves factory floor space and lowers labor cost, a huge advantage for carton factories with limited workshop area and tight manpower budgets.
Operational flexibility is another key reason to invest in a chain feed printer slotter die cutter. Most models adopt modular unit design with pneumatic locking and motorized separation structure. Operators can separate each unit quickly for plate change, size adjustment and daily cleaning without heavy disassembly work. Equipped with 360-degree electric phase adjustment, the printing, slotting and die-cutting cylinders can be fine-tuned electrically even during running, which speeds up job changeover between different carton sizes. For packaging factories receiving frequent small and mixed orders from e-commerce, food, furniture and logistics customers, fast setup means less downtime and higher machine utilization. The PLC touch screen control panel simplifies parameter setting: production speed, sheet count, ink supply and registration data can be saved as recipes, so repeat orders can be recalled in minutes.
In terms of running cost and maintenance, the chain feed type printer slotter die cutter offers outstanding value for money. Its transmission system uses hardened alloy gears and chrome-plated anilox rollers, built for long-term continuous operation under heavy carton production loads. The automatic ink circulation and ink roller separation system prevents water-based ink from drying on the anilox roller during temporary stops, cutting ink waste and reducing plate cleaning frequency. Compared with high-speed vacuum feed lines that require regular maintenance of vacuum pumps, fan motors and filter elements, the chain feeder has fewer vulnerable pneumatic and vacuum components. Spare parts are affordable and widely available, and daily maintenance only covers chain tension checking, gear lubrication and guide rail cleaning. This low-maintenance feature helps carton producers control long-term operating expenditure and avoid unexpected production halts.
Safety and adaptability should not be overlooked. Standard chain feeder printing slotting die cutting machines are fitted with safety alarm lamps, emergency stop buttons and interlock protection. When units are unlocked or opened for inspection, the machine locks automatically to prevent accidental injury. The frequency converter controls running speed smoothly, matching different board grades and order requirements, suitable for both low-volume custom cartons and stable medium-volume bulk shipping boxes. It works well for regular slotted containers, lock bottom cartons, pizza boxes, fruit packaging boxes and spare-parts outer cartons, covering most common corrugated packaging needs.
Naturally, chain feed printer slotter die cutter is not designed for ultra-high-speed large-scale mass production like premium vacuum feed lines. But for the majority of carton converters, speed is not the only target; stable feeding, low failure rate, strong board compatibility and lower entry investment matter more. If you often struggle with warped board feeding troubles, frequently switch carton sizes, and look for a durable all-in-one converting machine with a friendly budget, the chain feed type printer slotter die cutter is a practical, high-ROI choice.
To sum up, the Semi automatic carton printer die cutting slotter machine solves core pain points in carton production: unstable feeding of uneven corrugated board, scattered separate processes, slow job changeover and high maintenance costs. It balances precision, flexibility and running economy perfectly. Whether you plan to upgrade old single-function carton machines or start a new corrugated box production line, this proven flexo converting equipment helps you deliver consistent carton quality, shorten lead times and improve profit margins on every packaging order.
