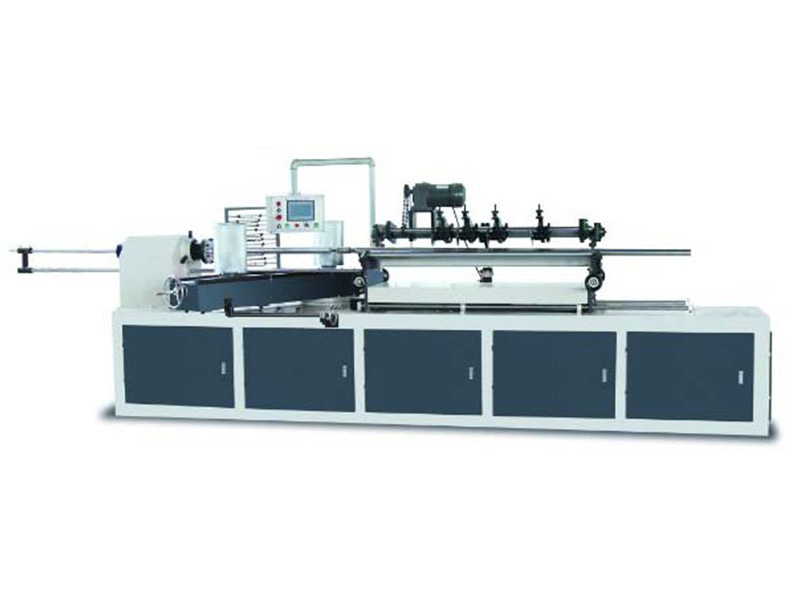

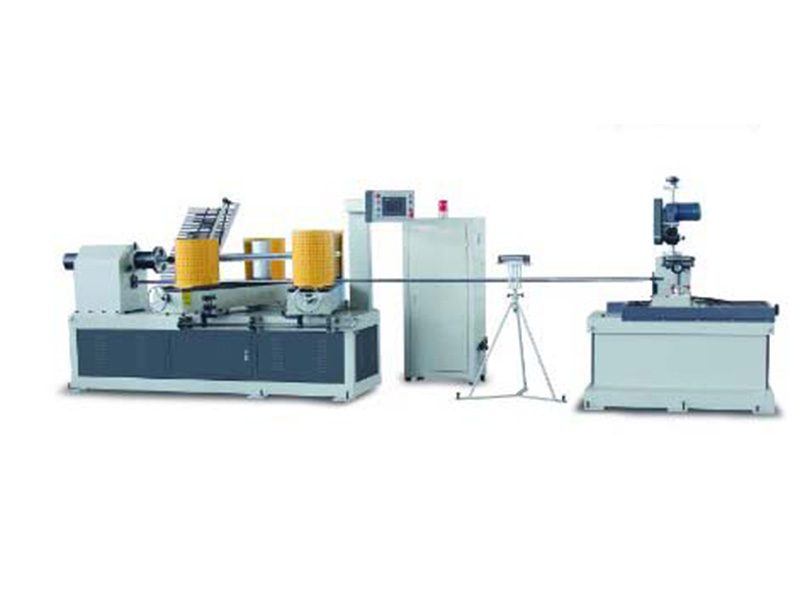

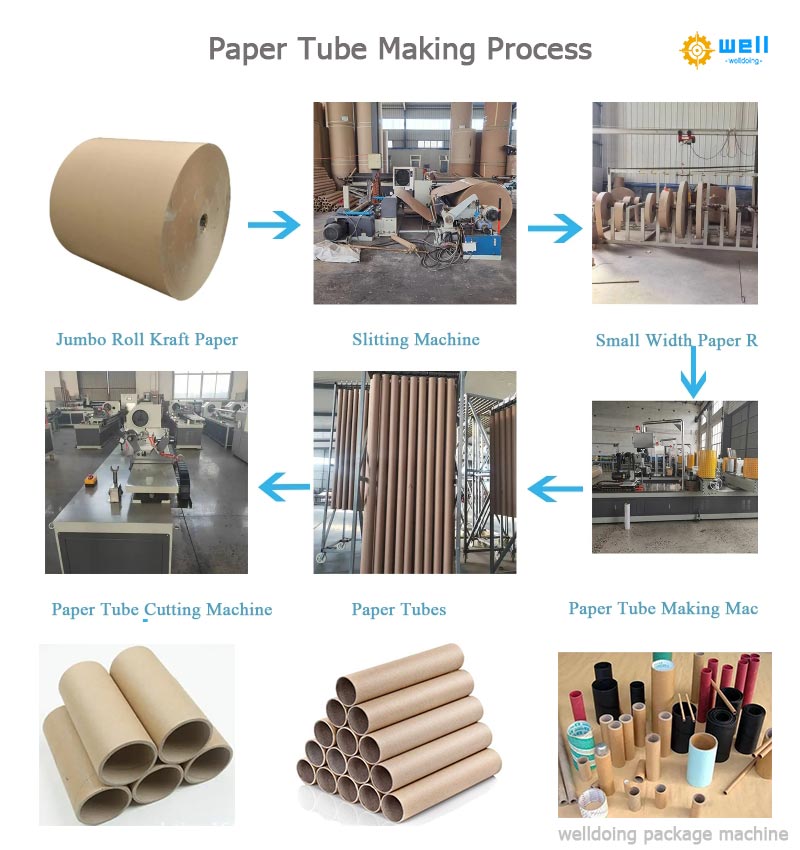

spiral automatic paper tube making machine is used for producing paper tube. The paper tube produced is used in various industries, chemical fiber industrial tube, film industrial tube, printing industry tube, paper industry tube, leather industry tube, food packaging tube. , pipes for the construction industry, tubes for the exhibition industry, etc.
There are also many types of spiral paper tube winding machines. The most common paper tube machines are spiral paper tube machines and flat roll paper tube machines.
| Model | AT-2 |
| Total Power(W) | 20KW |
| Dimension(L*W*H) | Around 14000*1500*2200mm per set |
| Weight | Around 3000-4000KG |
| Voltage | 380V / 440V / Customized |
| Working speed | 0-25m/min |
| Paper tube thickness | 3-15 mm |
| Applicable glue type | PVA and PVC and Startch glue |
| Tube inner diameter | 20-100mm |
| Paper plies | 16 |
| Paper gramme | 150-550gsm |
| In-line cutting unit | Single circular knife |
| In-line cutting length | 1000-4000mm |
| Service | Engineer available to service machinery |
