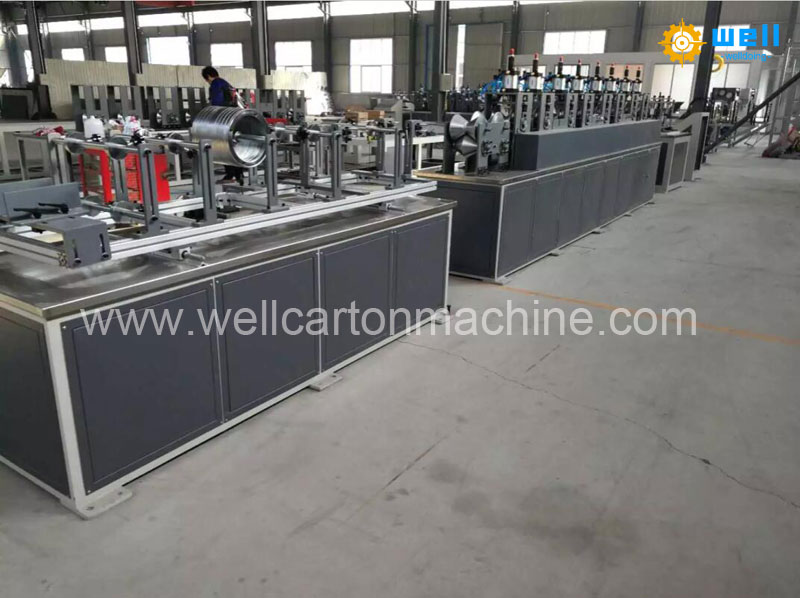

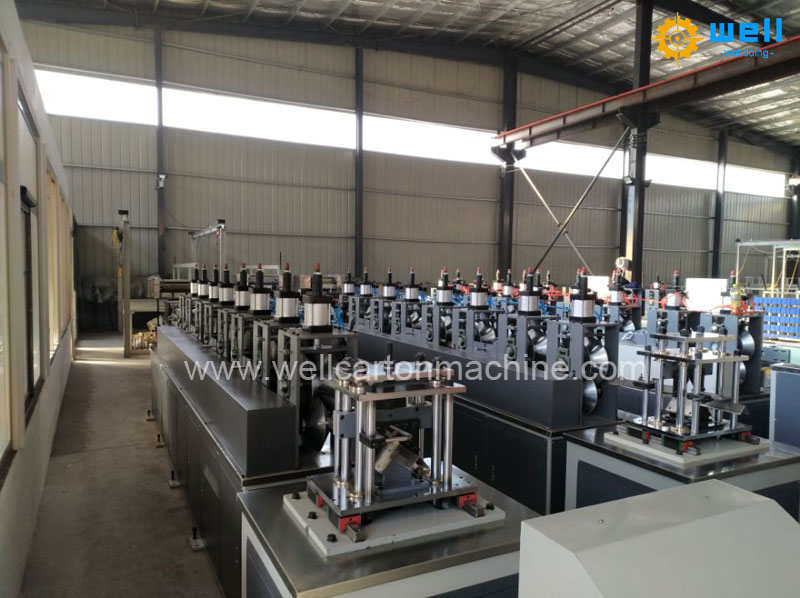

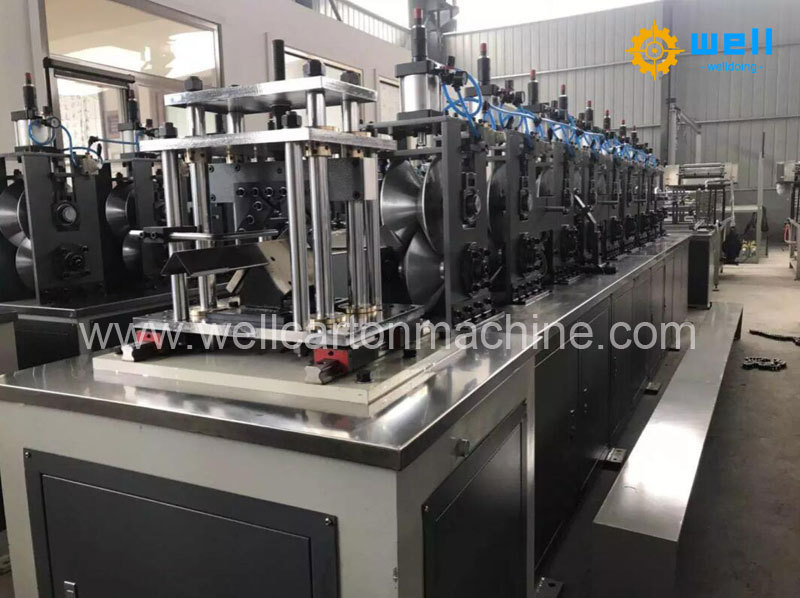

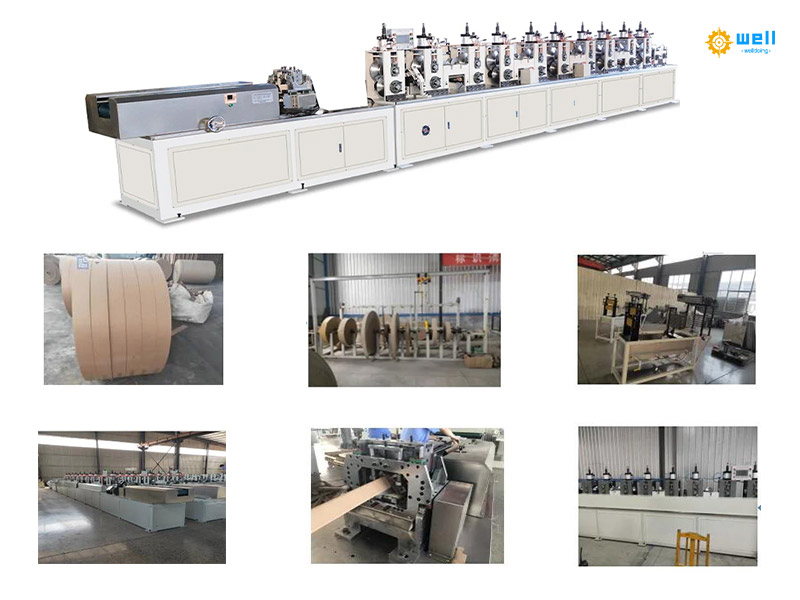

Full-automatic high speed paper edge protector characteristic：
The thick steel plate of the wall board support arm is welded firmly and the angle is balanced, so that the machine can correct the deviation smoothly under the condition of high speed, and the precision is high.
The whole machine adopts chromium-plated steel pipe, the surface is ground, and each one is treated by dynamic balance.

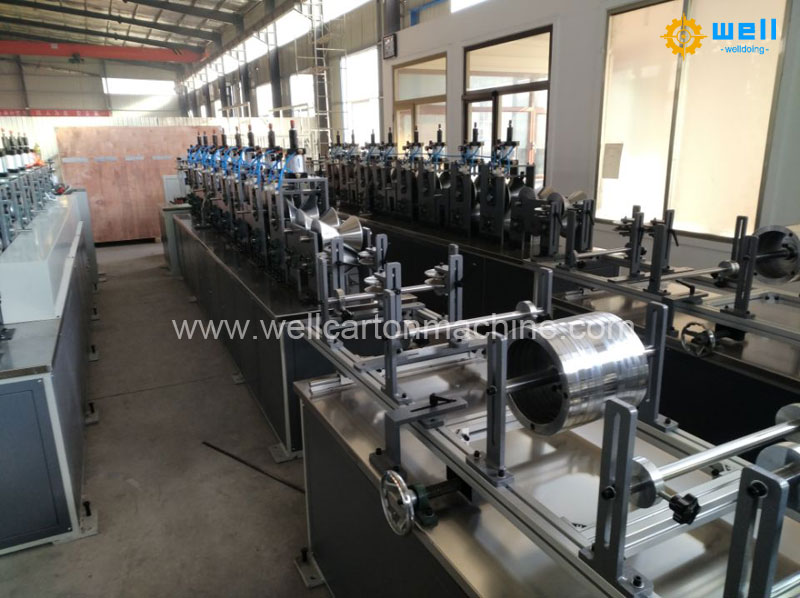

3. The uncoiling adopts 3 inch cone bottom clamping material without shaft unwinding, the uncoiling diameter can reach 1300 mm, equipped with automatic opposite side, automatic edge correction, automatic tool adjusting and positioning device, standard configuration manual oil pressure tension control. Higher requirements can be equipped with magnetic powder automatic tension controller.
The winding adopts a 3-inch air expansion reel and a tension controller to be wound, the cutting operation is simple, the winding diameter can be up to 1300 mm, and the winding is beautiful and tidy.

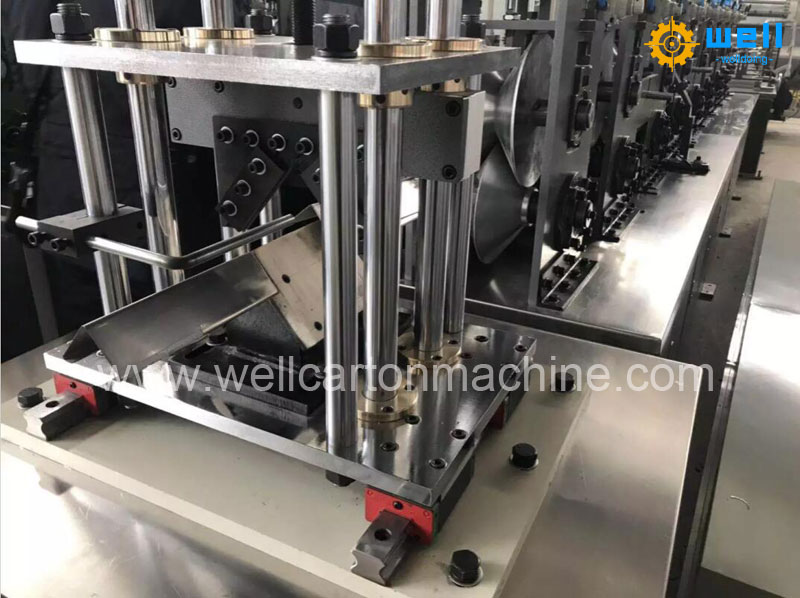

The cutting tool is designed with face knife and bottom knife, and the adjustable tool between 30mm-1600mm (specially customized 10mm~1600mm).
Spindle and circular knife use frequency converter stepless speed change system; frequency converter speed regulation system, through manual adjustment of the speed of the machine, convenient and simple. PLC digital control, touch screen set batch production。
Using precision ball rod and slide rail, parallel propulsion cutting width, using clothing motor adjustment system stepless adjustment and control of cutting speed, so as to achieve high precision cutting, * degree can be controlled at 0.1 mm。
Our service
1. We provide whole establish new factory solution , give customer a comprehensive design plant idea, consider the target customer market . We own a great team , engineer service to oversea country is available.
2. After-Sales Service
1) Engineers available to service machinery overseas.(including installation, debugging, training etc.)
2) Whole machine main parts guarantee for 1 year. 10 years warranty for main transmission gear ensure print accuracy.
3) 10 years experience, reply within 12 hours, provide solve solution within 24 hours.
