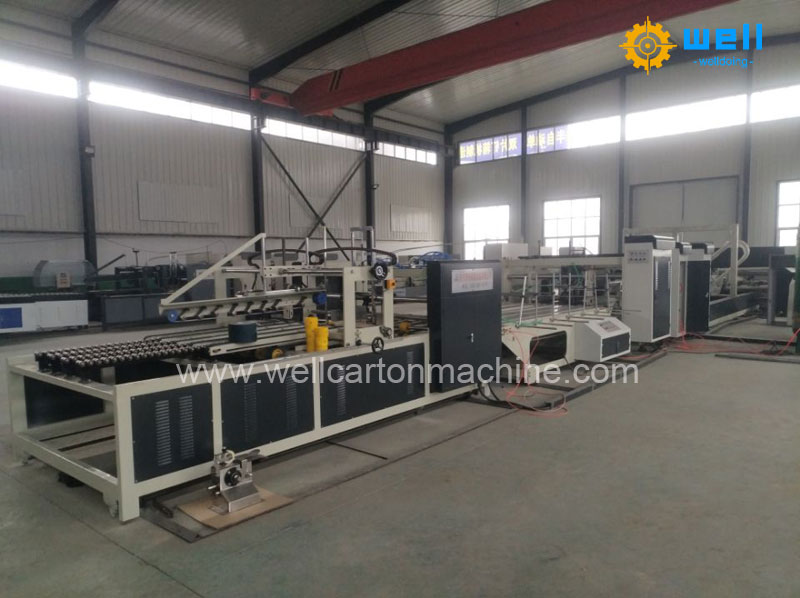

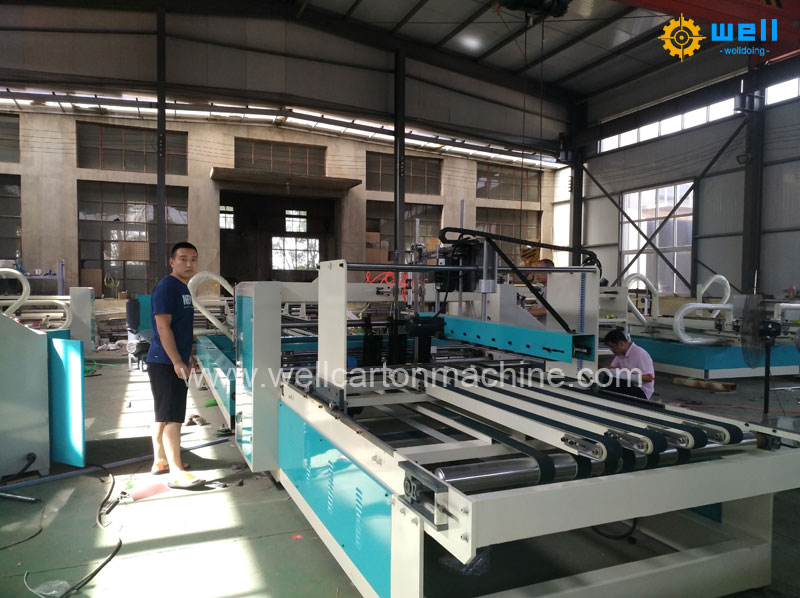

Full Automatic folding gluing machinery operator operation specification:
Turn on the power switch for the distribution cabinet of the adhesive box machine, the transformer power switch, turn on the air pump switch, and check that each valve is open.
Take a piece of material and align the center of the carton formed after folding with the center line of the box machine.
Expand the shaped carton, place the tongue to the left on the feeding belt of the paper, and then measure the length of the first music mark to the right edge on the right side of the material, according to which the position of the right drive rod is fixed.
Measure the long seat from the right edge to the folding point of the right account mark, and fix the position of the conveyor table, climbing and counting table right gear board according to this length;
The length from the left indentation line to the left second indentation line, according to which the position of the left transmission rod is fixed.
Fix the position of the conveyor, climbing and counting table left gear board in the same way;
Measure the distance between the left tray and the tongue of the carton, and then fix the position of the rubber wheel;
A proper amount of material is placed on the paper, the position of the paper-supporting roller is adjusted by a hand-operated turbine and a worm, and the paper-supporting roller is fixed with an adjustable screw.
opening the fan switch of the box-sticking machine, the sensor switch, adjusting the speed of the conveying belt, opening the paper feeding part and the paper stacking part;
Always check the quality of the sticky corrugated box and the size of the glue, adjust the machine timely, ensure the quality of the product and the normal operation of the machine.
