Paper feeder of the Corrguated carton printing slotting die-cutting machine
1. Vacuum adsorption assisted back kick feeding system is used to adjust suction according to different size of cardboard. The cardboard is adsorbed on the feeding table to smooth the cardboard into the printing department.
2. Electric adjustment of side gear position, fast, accurate and convenient adjustment
3. Paper feeding rollers are wrapped with wear-resistant rubber and balanced. Paper feeding rollers are embossed and plated with hard chromium.
4. There is a production quantity setting device without manual counting. When using the automatic zero-return device, two sheets can be adjusted to the correct position to reduce the waste of cardboard.
5. ust removal with brush can remove magazines on cardboard and improve printing quality.
6. The function of the control panel is concise and centralized, and the operation is convenient.

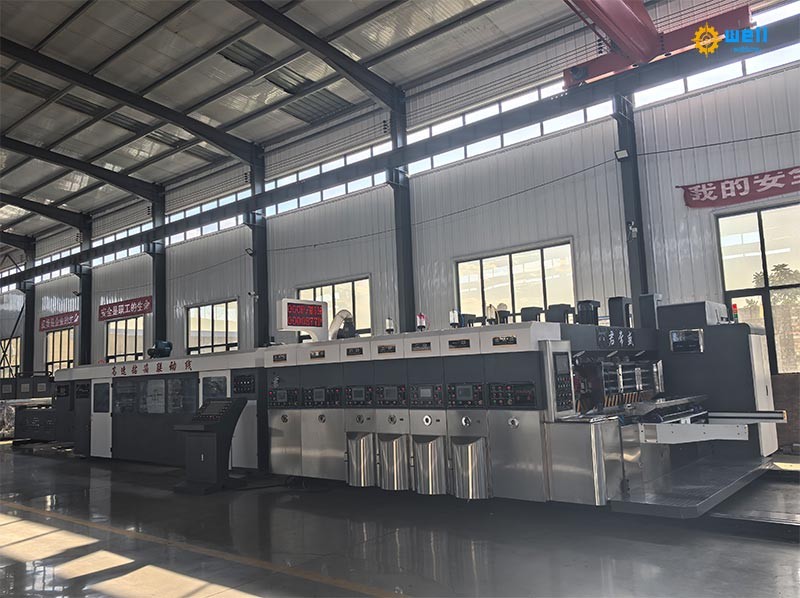

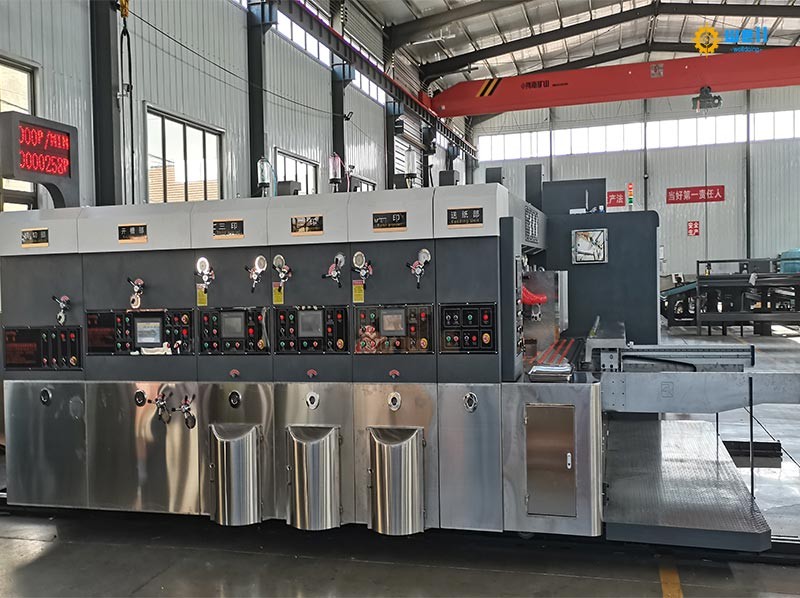

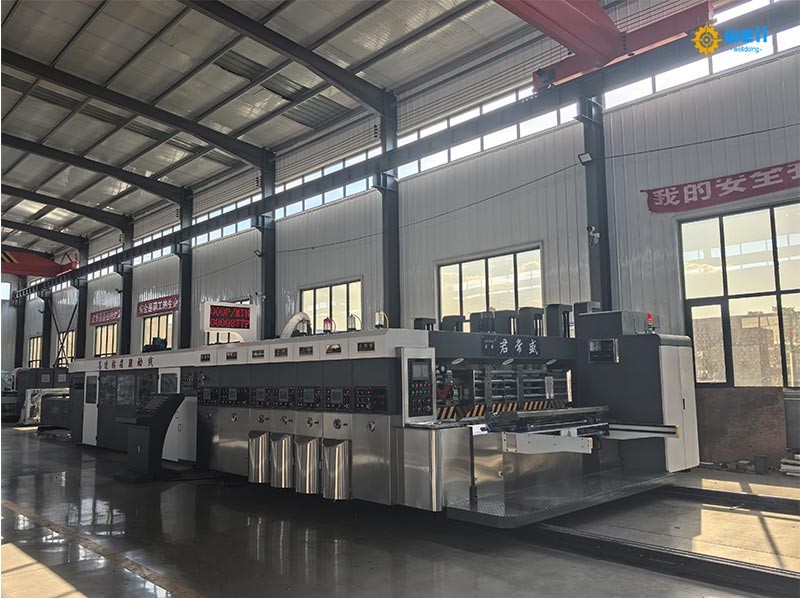

The machine consists of five parts: paper feeding, printing, slotting, die cutting and stacking.
Paper feeding department adopts advanced negative pressure adsorption and kick-back paper feeding with adjustable air volume.
The printing department adopts hanging plate roll, which can shorten the time of plate loading.
The slotting part of the electric adjusting box height, phase and slotting tool base move left and right, and synchronize with the press wheel.
Aerodynamic lifting of front end and photoelectric tracking of rear end of stacking part can automatically rise and fall
Alarm system to ensure the safety of operators.
Full automatic flexo printer slotter die cutter machine Options:
Computer Control, Touch Screen Setting Control, Phase Adjustment, Automatic Zero Return, Memory Function
Frequency modulation control of main motor
Leading edge paper feeding
Printing Department of the Full automatic flexo printer slotter die cutter machine
1. Using hanging plate printing system, the plate-changing operation is convenient, and pedal switch is installed to facilitate hanging plate.
2. The circumferential adjustment mechanism of printing drum adopts planetary gear structure, and the hardness of the tooth surface reaches HRC58-60.
3. Printing phase adopts frequency converter, touch screen control and electric digital 360 degree adjustment (operation, stop state can be adjusted). Inking roll adopts high precision hard chromium wear resistant mesh roll.
4. Rubber rollers are coated with wear-resistant rubber on the surface of steel pipes. The ink transfer effect is good after medium and high special grinding.

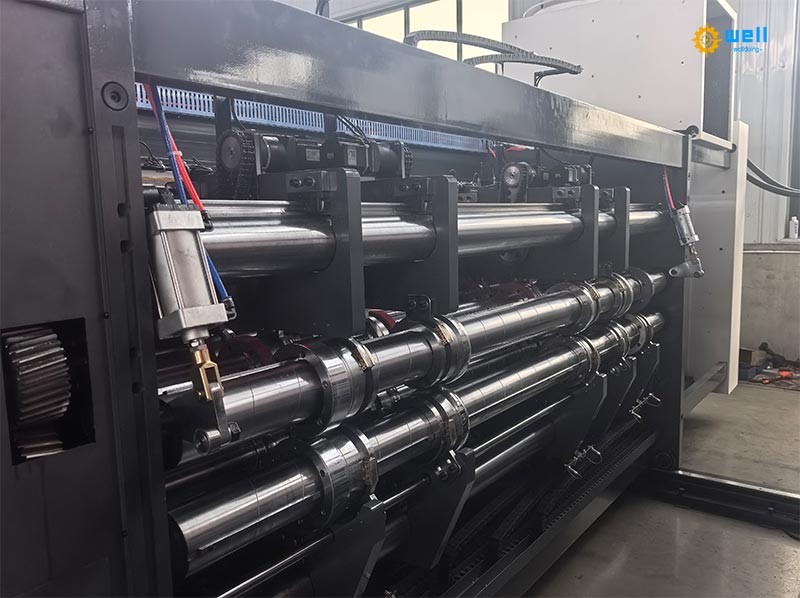

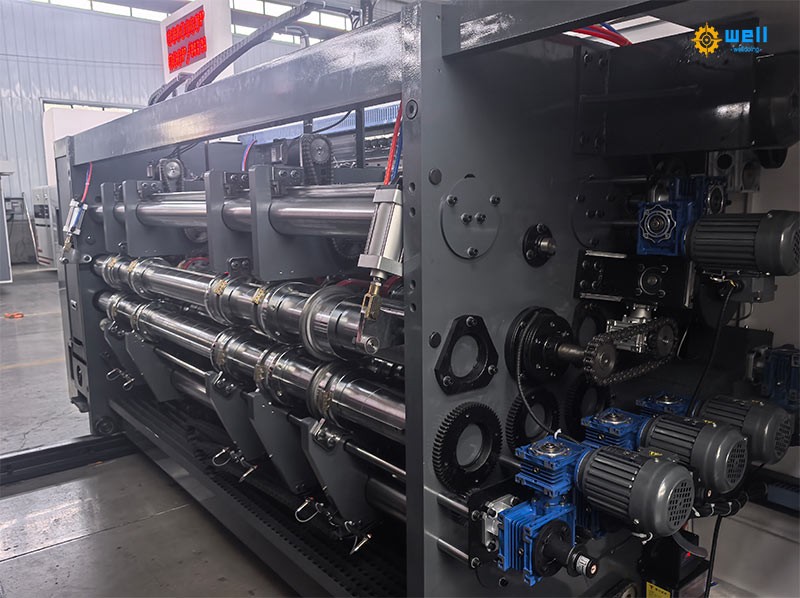

Slotting Department
Slotted part
Line-pressing wheel. Paper feeding wheel and slotting tool base are guided by rolling linear guideway, moving smoothly and positioning accurately (high-grade machine)
The slotting phase adopts frequency converter, touch screen control and electric digital 360 degree adjustment (adjustable in running and stopping state), and has reset function. The order control panel is equipped with touch screen, which can control paper feeding, printing and slotting parts. It is easy to operate.
Medium knife moving, can produce large two-piece carton (special order)
Knife axle and paper feeding wheel axle are polished by hard chromium plating and have long service life.
Punching device can be equipped according to user's needs
Die Cutting Department
Die-cutting Phase, Computer and Electric Digital Display Control.
Electric Digital Display Adjustment of Die Cutting Pressure Gap.
Automatic displacement mechanism of rubber cushion roll to prolong the service life of rubber cushion.
Imported Quick Change Rubber Cushion, Convenient Change, Wear Resistance.
Precision "controlled" speed difference compensation system to ensure cross-cutting accuracy.
Rubber pad grinding correction mechanism, increase the usage rate of rubber pad, reduce consumption.
Paper Receiving Department
Paper arm can be operated manually or automatically, with an insurance mechanism to prevent sudden drop of paper arm and ensure the safety of operators.
Bed table lifting strong chain drive
The stacking height is 1600 mm, 1800 mm and 2000 mm.
FAQ:
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2.What's your payment term?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3.Which country have you sold before?
North America,South America,Egypt,South Africa,Southeast Asia and India.
4.Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
5. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from
the very small thing(even a small screw we will choose the best quality) from the beginning.
6.What about the after-sales service?
After you buy the machines,we can go to your country to install and repair .
Our Service:
Pre-Sales Service
1. Inquiry and consulting support.
2.View our Factory.
After-Sales Service
1. Installation, training how to use the machine and technical support.
2. Engineers available to service machinery overseas.
