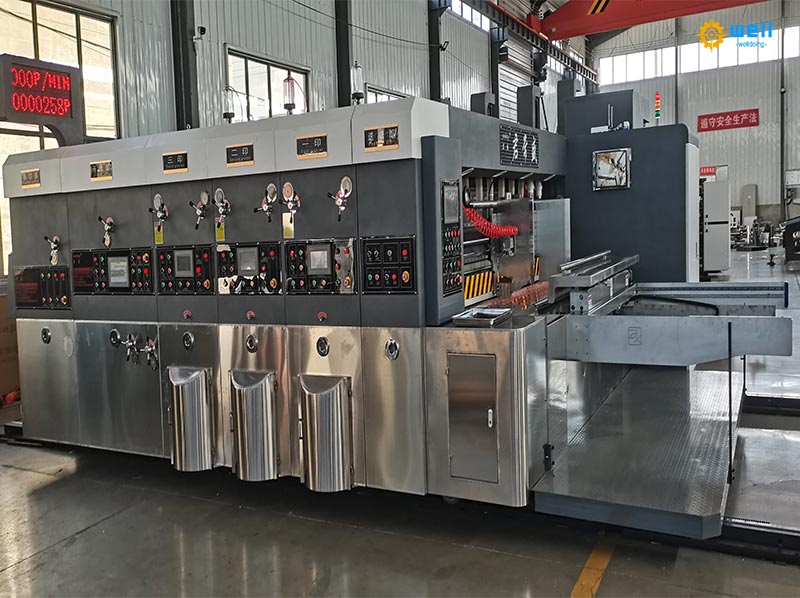

Lead edge feeder printing die cutting slotting machine :
1. Designed according to the high standard and reliable function.
2. Main motor frequency convert to control.
3. All the drive rollers adopted high quality steel materials, hard chromiumplating and the surface treated by lapping finish.
4. Driving gear: 40Cr alloy, gas azotizing and precise made.
5. The main drive roller adopt keyless connect, decrease the connection gap, guarantee the printing precision.
6. Lubricate oil automatic balance device, keep the equal oil level equal in each unit.
7. The Full automatic box printer slotter rotary die cutter machine adopt PLC control, with utomatic zero return and emories function.
8. Use lead edge feeder for feed the cardboard. No table lift and down while work, it is easy to work for the bent and thin paperboard.
9. Customer can choose use steel anilox roller or ceramic roller, the lines of the anilox roller ac so can be chosed according to the customer requirement.
10. Option: Rorary die-cutter, rotary slotter.
High speed corrugated box printer die cutter slotter machine Characteristic:
The Corrguated carton printing slotting die cutting equipment consists of five parts: paper feeding, printing, slotting, die cutting and stacking.
Paper feeding department adopts advanced negative pressure adsorption and kick-back paper feeding with adjustable air volume.
The printing department adopts hanging plate roll, which can shorten the time of plate loading.
The slotting part of the electric adjusting box height, phase and slotting tool base move left and right, and synchronize with the press wheel.
Aerodynamic lifting of front end and photoelectric tracking of rear end of stacking part can automatically rise and fall.
Alarm system to ensure the safety of operators.
Leading edge paper feeding printing die-cutting equipment main structure and its description
| Name | Description |
| Lead Feeding part | Feed paperboard automatically |
| Printing part | Flexo printing Print the colour you want , max colour is 6 |
| Slotting part | This part is for standard carton box making |
| Die cutting | This part is for customized carton box making(We can also do mould according to customer's box design ) |
| Stacker part | Finished cardboard will be auto stacker by this machine |
Corrguated carton printing slotting die-cutting machine Options:
Computer Control, Touch Screen Setting Control, Phase Adjustment, Automatic Zero Return, Memory Function
Frequency modulation control of main motor
Leading edge paper feeding
Printing Department of the Corrugated carton flexo printing slotting die cutting machine
1. Using hanging plate printing system, the plate-changing operation is convenient, and pedal switch is installed to facilitate hanging plate.
2. The circumferential adjustment mechanism of printing drum adopts planetary gear structure, and the hardness of the tooth surface reaches HRC58-60.
3. Printing phase adopts frequency converter, touch screen control and electric digital 360 degree adjustment (operation, stop state can be adjusted). Inking roll adopts high precision hard chromium wear resistant mesh roll.
4. Rubber rollers are coated with wear-resistant rubber on the surface of steel pipes. The ink transfer effect is good after medium and high special grinding.

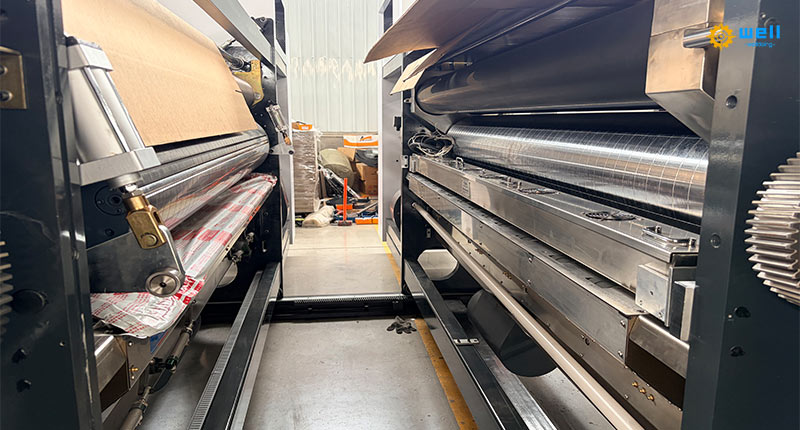

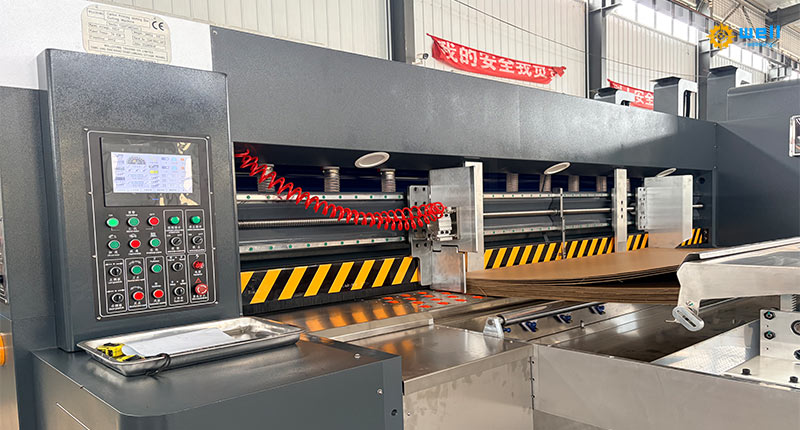

Slotting Department
Line-pressing wheel. Paper feeding wheel and slotting tool base are guided by rolling linear guideway, moving smoothly and positioning accurately (high-grade machine)
The slotting phase adopts frequency converter, touch screen control and electric digital 360 degree adjustment (adjustable in running and stopping state), and has reset function. The order control panel is equipped with touch screen, which can control paper feeding, printing and slotting parts. It is easy to operate.
Medium knife moving, can produce large two-piece carton (special order)
Knife axle and paper feeding wheel axle are polished by hard chromium plating and have long service life.
Punching device can be equipped according to user's needs

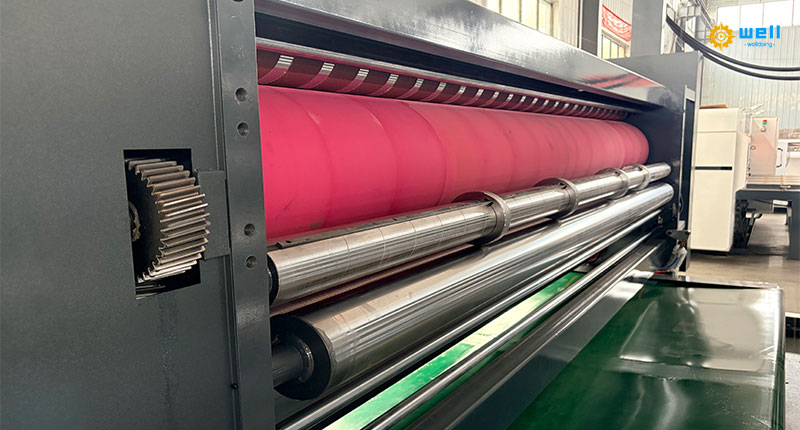

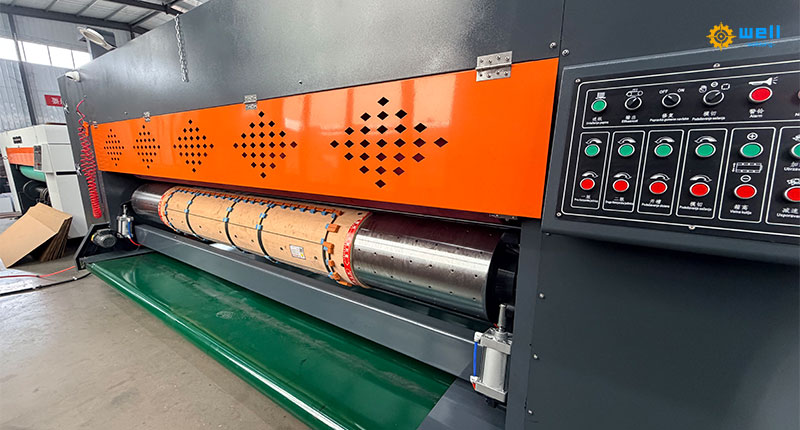

Die Cutting Department
Die-cutting Phase, Computer and Electric Digital Display Control
Electric Digital Display Adjustment of Die Cutting Pressure Gap
Automatic displacement mechanism of rubber cushion roll to prolong the service life of rubber cushion
Imported Quick Change Rubber Cushion, Convenient Change, Wear Resistance
Precision "controlled" speed difference compensation system to ensure cross-cutting accuracy
Rubber pad grinding correction mechanism, increase the usage rate of rubber pad, reduce consumption

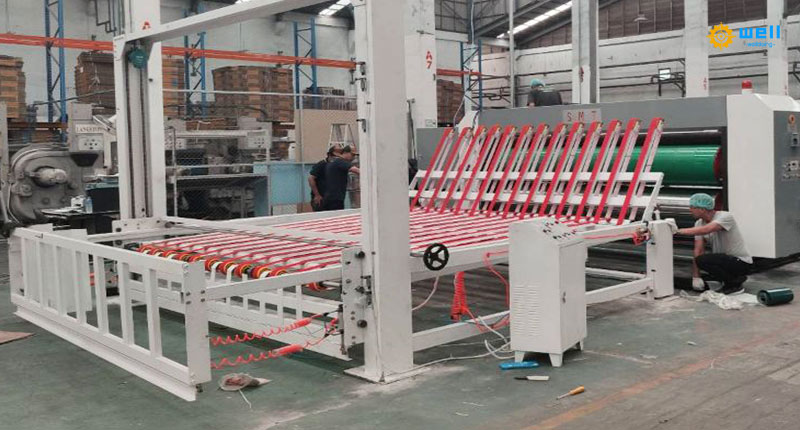

Paper Receiving Department
Paper arm can be operated manually or automatically, with an insurance mechanism to prevent sudden drop of paper arm and ensure the safety of operators.
Bed table lifting strong chain drive
The stacking height is 1600 mm, 1800 mm and 2000 mm.
FAQ:
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2.What's your payment term?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3.Which country have you sold before?
North America,South America,Egypt,South Africa,Southeast Asia and India.
4.Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
5. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from
the very small thing(even a small screw we will choose the best quality) from the beginning.
6.What about the after-sales service?
After you buy the machines,we can go to your country to install and repair .
Our Service:
Pre-Sales Service
1. Inquiry and consulting support.
2.View our Factory.
After-Sales Service
1. Installation, training how to use the machine and technical support.
2. Engineers available to service machinery overseas
If you are also interested in this machine,please don’t hesitate to contact us:
Overseas manager: Tom Wang
Email:cartonmachine.tomwang@aliyun.com
Phone/Wechat/Whatsapp:+86 13303078975
